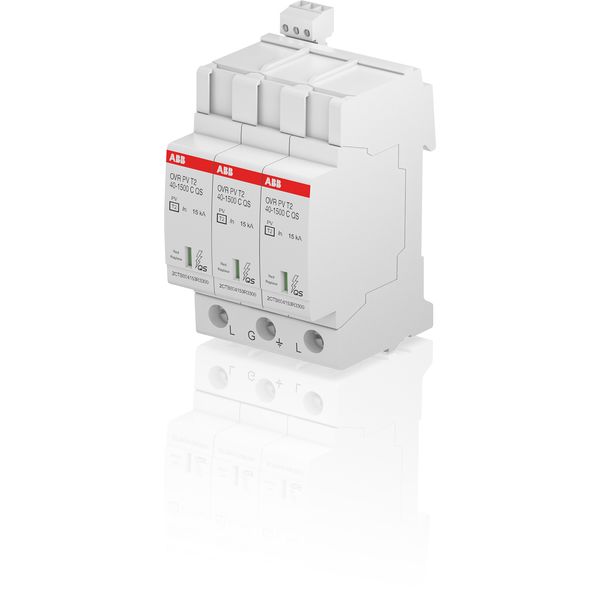

Overvoltage protection Type PV, 20/ 40kA, 1500V, plug, signal Bulk
Order only
Price (excl. VAT):
270,44 €
EAN: 3660308527301
MPN: 2CTB804153Z2700
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Overvoltage protection Type PV, 20/ 40kA, 1500V, plug, signal Bulk |
| Brand | ABB |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin* | FR |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3090 00 |
| Voltage protection level | 4.2 kV |
| Nominal discharge surge current (8/20) | 20 kA |
| Nominal voltage AC | 0 V |
| Nominal voltage DC | 1500 V |
| Voltage protection level L-N | 4.2 kV |
| Degree of protection (IP) | IP20 |
| Max. PV-voltage | 1500 V |
Packing details
| Packing level 1 | 3660308527301 |
Other Technical data
| Mounting method | DIN rail (top hat rail) 35 mm |
| With remote signalling contact | Yes |
| Number of conductors (without earthing) | 0 |
| Construction size | 3 modular spacing |
| Max. continuous voltage AC | 0 V |
| Category type 2 | Yes |
| Signalling at the device | Optic |
| Max. continuous voltage DC | 1500 V |
| Voltage protection level N-PE | 0 kV |
| Integrated backup fuse | No |
| Max. conductor cross section solid (solid, stranded) | 35 mm² |
| Max. conductor cross section flexible (fine-strand) | 25 mm² |
| Max. discharge surge current (8/20) | 0 kA |
| Short-circuit breaking capacity (Isccr) | 0 kA |
| Max. overcurrent protection device, parallel connection (fuse) | 0 A |
| Max. overcurrent protection device, series connection (fuse) | 0 A |
| Integrated short-circuit protection selective to fuse gG | 0 A |
