Technical Information
| Item condition |
New |
| Manufacture name |

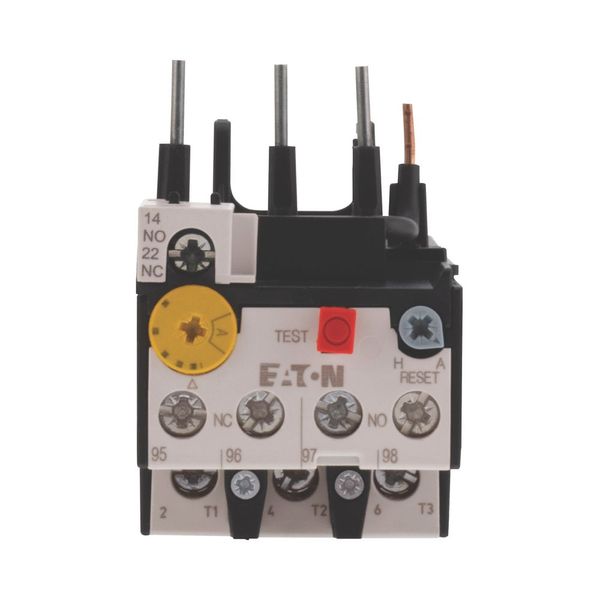

ZB32-1,6 Overload relay, ZB32, Ir= 1 - 1.6 A, 1 N/O, 1 N/C, Direct mounting, IP20 |
| Brand |
EATON
|
| Categories |
Overload Relays
|
| Country of origin |
DE |
| Harmonized System Code |
8536 3010 00
|
| Mounting method |
Direct attachment |
| Release class |
CLASS 10 A |
| Type of electrical connection of main circuit |
Screw connection |
| Max. rated operation voltage Ue |
690 V |
| Adjustable current range |
1-1.6 A |
Packing details
| Packing level 1 |
4015082784478 |
Other Technical data
| Number of auxiliary contacts as normally open contact |
1 |
| Number of auxiliary contacts as normally closed contact |
1 |
| Number of auxiliary contacts as change-over contact |
0 |
| Reset function input |
No |
| Reset function automatic |
Yes |
| Reset function push-button |
Yes |
Description
Overload relay, Product range: Overload relay ZB up to 150 A, Accessories: Overload relays, Frame size: ZB32, Phase-failure sensitivity: IEC/EN 60947, VDE 0660 Part 102, Description: Test/off button, Reset pushbutton manual/auto, Trip-free release, Mounting type: Direct mounting, Auxiliary contacts N/O = Normally open: 1 N/O, Auxiliary contacts N/C = Normally closed: 1 N/C, For use with: DILM17, DILM25,, DILM32,, DILM38,, DILMF8,, DILMF11,, DILMF14,, DILMF17,, DILMF25,, DILMF32,, DIULM17, DIULM25,, DIULM32,, SDAINLM30,, SDAINLM45,, SDAINLM55, Standards: IEC/EN 60947, VDE 0660, UL, CSA, Degree of Protection: IP20
