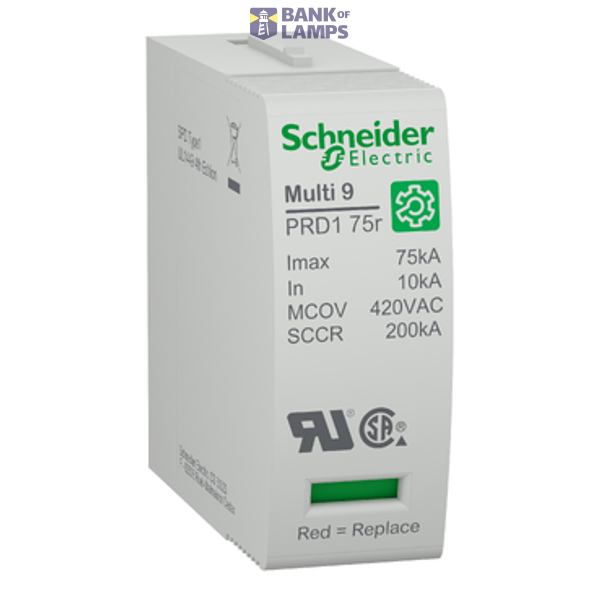

Multi9 PRD1 75r Cartridge C1 SPD
Order only
EAN: 3606481586117
MPN: M9LC420
Package: 1
Price (excl. VAT)
160,22 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
This price is valid until next price list or while stock lasts
Technical Information
| Item condition | New |
| Manufacture name | Multi9 PRD1 75r Cartridge C1 SPD |
| Brand | Schneider Electric |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin* | ES |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3090 00 |
| ETIM | EC000941 |
| Voltage protection level | 1.5 kV |
| Nominal discharge surge current (8/20) | 10 kA |
| Nominal voltage AC | 347 V |
| Degree of protection (IP) | Other |
| System configuration DC | No |
| System configuration IT | No |
| System configuration TN | No |
| System configuration TN-C-S | No |
Packing details
| Packing level 1 | 3606481586117, 3606481586117 |
Other Technical data
| Mounting method | Other |
| With remote signalling contact | No |
| Number of conductors (without earthing) | 1 |
| Construction size | 1 modular spacing |
| Max. continuous voltage AC | 420 V |
| Category type 2 | No |
| Signalling at the device | Optic |
| Integrated backup fuse | No |
| System configuration TN-C | No |
| System configuration TN-S | No |
| System configuration TT | No |
| System configuration other | Yes |
| Max. discharge surge current (8/20) | 75 kA |
| Integrated short-circuit protection | No |
| Leakage-current free | No |
Downloads
Description
Dit Multi9 product is een cartridge voor PRD1 75r overspanningsbeveiliging. De Imax maximale ontladingsstroom is 75 kA. De In nominale ontladingsstroom is 10kA. De Uc maximale continue werkspanning is 420VAC. Het maximale Up-spanningsbeveiligingsniveau is 1500V. Het kan worden aangesloten op een module van het overspanningsbeveiligingsapparaat. De breedte is 2 stappen van 9mm. De productkleur is lichtgrijs (RAL 7035). De afmetingen zijn (B) 17,5mm x (H) 45mm x (D) 68,5mm. De beschermingsgraad is NEMA 1. De bedrijfstemperatuur is -25°C tot 60°C. De opslagtemperatuur is -40°C tot 85°C. Het is conform de UL 1449 standaard.
