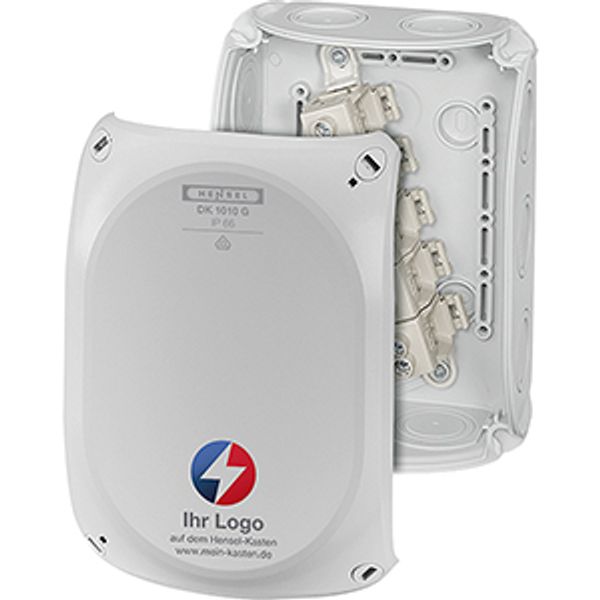

MB own logo cable box IP66, BM4 2.5-10 mm² 5p M25/32 membranes Gray (DK 1010 G MB)
Order only
Price (excl. VAT):
23,13 €
EAN: 4012591134510
MPN: 62000308
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | MB own logo cable box IP66, BM4 2.5-10 mm² 5p M25/32 membranes Gray (DK 1010 G MB) |
| Brand | HENSEL |
| Categories |
Surface Mounted Junction Boxes
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| Halogen free | Yes |
| Rated insulation voltage Ui | 690 V |
| Sealable | Yes |
| Max. conductor cross section | 16 mm² |
| Weatherproof | No |
| Degree of protection (IP) | IP66 |
| Inlet from the rear | Yes |
Packing details
| Packing level 1 | 4012591134510, 4012591134510 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Colour | Grey |
| Width | 130 mm |
| Depth | 77 mm |
| Shape | Rectangular |
| Surface protection | Untreated |
| Length | 180 mm |
| Circuit integrity | None |
| Operating temperature | -25-40 °C |
| Material | Plastic |
| Number of inlets | 10 |
| Explosion-tested version | No |
| Cover attachment | Screwed |
| With screening | No |
| For tube diameter | Other |
| For Ex-zone gas | None |
| Tackable | No |
| Type of housing feed-through | Other |
| For Ex-Zone dust | None |
| Cover model | Other |
| Castable | No |
| With casting compound | No |
Downloads
Description
Kabeldozen volgens IEC 60670-22, met vast ingebouwde verbindingsklem en uitneembare elastische afdichtmembranen. Geschikt voor binnenruimten en beschermde buitenopstelling volgens DIN VDE 0100, deel 737. Voor omgevingstemperaturen van maximaal +40 °C en minimaal -25 °C, bij een relatieve luchtvochtigheid van 50% bij 40 °C of 100% bij 25 °C. Materiaal hittebestendig van -25 °C tot 70 °C. Brandgedrag volgens VDE 0471, deel 2 – Gloeidraadtest 750 °C, UL Subject 94 V-2. Beschermingsgraad volgens IEC 60529: IP 66. Nominale isolatiespanning: 690 V. Materiaal: thermoplast, halogeen- en siliconenvrij. Kleur: grijs, RAL 7035. Dekselbevestiging met snelsluiting, zonder accessoires afsluitbaar. Insteekbare externe beugels voor wandmontage bij de levering inbegrepen. Merk: HENSEL ENYCASE DK. Nominale doorsnede: 2,5-10 mm², 5-polige klem, afmetingen HxBxD = 130 x 180 x 77 mm
