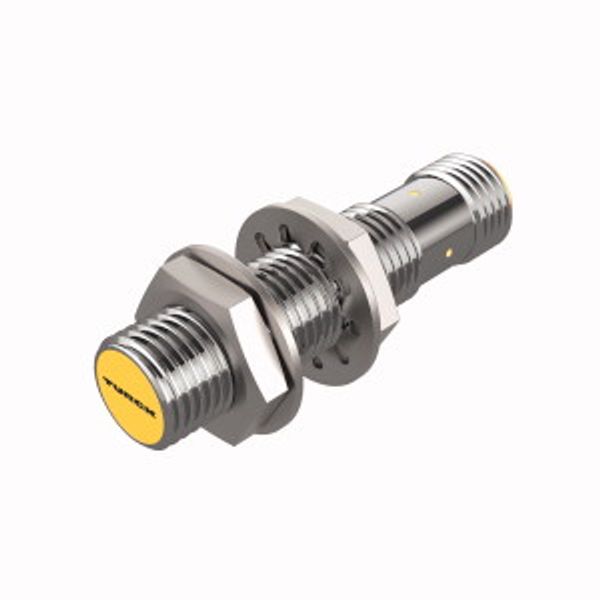

Magnetic Field Sensor Magnetic-inductive Proximity Sensor BIM-M12E-Y1X-H1141
Order Only
Minimal order quantity: 1
Price (excl. VAT):
87,37 €
EAN: 4047101064810
MPN: 1074003
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Magnetic Field Sensor Magnetic-inductive Proximity Sensor BIM-M12E-Y1X-H1141 |
| Brand | TURCK |
| Categories |
Proximity Sensors
|
| Country of origin | PL |
| Harmonized System Code | 8536 5019 00 |
| Voltage type | DC |
| Housing material | Other |
| Suitable for safety functions | Yes |
| Switching distance | 90 mm |
| Type of electric connection | Plug-in connection |
| Type of switching output | NAMUR |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 1G |
| Explosion safety category for dust | ATEX dust-ex-protection, Cat. 1D |
| Construction type housing | Cylinder, screw-thread |
| Degree of protection (IP) | IP67 |
| Performance level according to EN ISO 13849-1 | Level c |
| SIL according to IEC 61508 | 2 |
Packing details
| Packing level 1 | 4047101064810, 4047101064810 |
Other Technical data
| Coating housing | Chromium-plated |
| Ambient temperature | -25 °C |
| With monitoring function downstream switching devices | No |
| Cross-/short circuit identification possible | No |
| Type of actuation | Magnet |

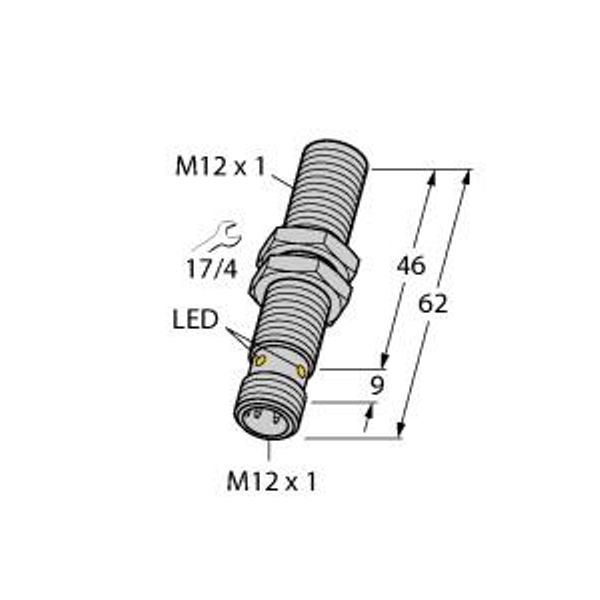

| Diameter sensor | 12 mm |
| Length of sensor | 62 mm |
Downloads
Description
Magneetveldsensor, magneetinductieve naderingssensor, Nominale schakelafstand 90 mm, schroefdraad, M12 x 1, messing verchroomd, nominale schakelafstand 90 mm, in combinatie met magneet DMR31-15-5, DC 2-draads, nom. 8,2 VDC, uitgang volgens DIN EN 60947-5-6 (NAMUR), connector M12 x 1, ATEX-categorie II 1 G, Ex-zone 0, ATEX-categorie II 1 D, Ex-zone 20, SIL2 (modus voor lage vraag) conform IEC 61508, PL c conform ISO 13849-1 bij HFT0, SIL3 (modus voor volledige vraag) conform IEC 61508, PL e conform ISO 13849-1 met redundante configuratie HFT1
