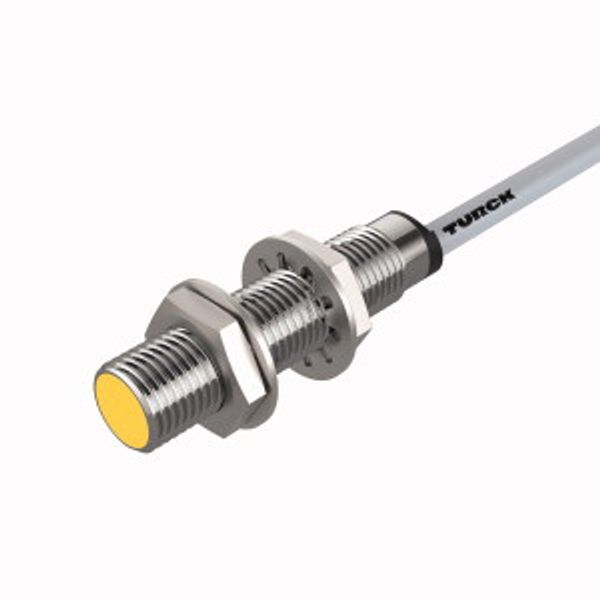

Magnetic Field Sensor Magnetic-inductive Proximity Sensor BIM-M12E-AG4X
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
121,66 €
EAN: 4047101096675
MPN: 4430200
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Magnetic Field Sensor Magnetic-inductive Proximity Sensor BIM-M12E-AG4X |
| Brand | TURCK |
| Categories |
Proximity Sensors
|
| Country of origin | PL |
| Harmonized System Code | 8536 5080 00 |
| Voltage type | DC |
| Housing material | Other |
| Suitable for safety functions | No |
| Switching distance | 90 mm |
| Type of electric connection | Cable |
| Construction type housing | Cylinder, screw-thread |
| Degree of protection (IP) | IP67 |
| Rated supply voltage at DC | 10 V |
Packing details
| Packing level 1 | 4047101096675, 4047101096675 |
Other Technical data
| Coating housing | Chromium-plated |
| Ambient temperature | -25 °C |
| With monitoring function downstream switching devices | No |
| Cross-/short circuit identification possible | Yes |
| Type of actuation | Magnet |

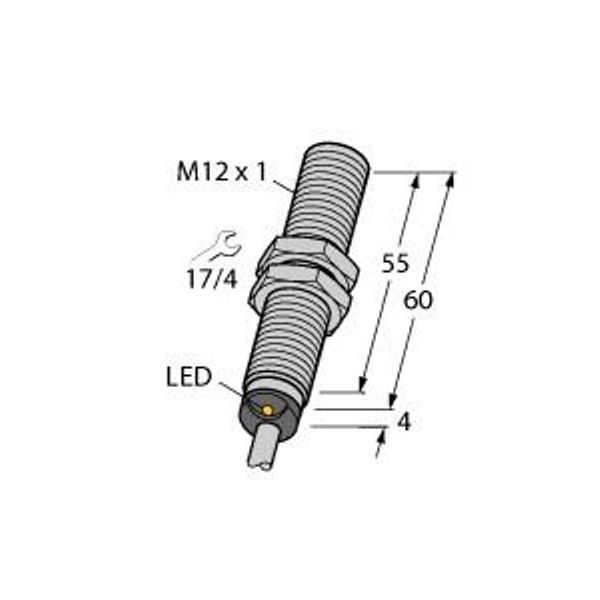

| Diameter sensor | 12 mm |
| Length of sensor | 64 mm |
Downloads
Description
Magneetveldsensor, magneetinductieve naderingssensor, Bedrijfsspanning 10…65 VDC, Nominale schakelafstand 90 mm, Kabellengte 2 m, schroefdraad, M12 x 1, messing verchroomd, nominale schakelafstand 90 mm, in combinatie met magneet DMR31-15-5, DC 2‐draads, 10…65 VDC, gepoolde versie, N.O.-contact, kabelaansluiting
