Magnetic Field Sensor Magnetic-inductive Proximity Sensor  BIM-AKT-Y1X/S235 image 1
TURCK

Magnetic Field Sensor Magnetic-inductive Proximity Sensor  BIM-AKT-Y1X/S235

Order Only Minimal order quantity: 1
Price (excl. VAT):
70,11 €
This price is valid until 24.12.25
EAN: 4047101064049
MPN: 1055002
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Magnetic Field Sensor Magnetic-inductive Proximity Sensor  BIM-AKT-Y1X/S235
Brand TURCK
Categories Proximity Sensors
Country of origin PL
Harmonized System Code 8536 5019 00
Voltage type DC
Housing material Plastic
Suitable for safety functions Yes
Type of electric connection Cable
Type of switching output NAMUR
Explosion safety category for gas ATEX gas-ex-protection, Cat. 2G
Explosion safety category for dust ATEX dust-ex-protection, Cat. 1D
Construction type housing Cuboid
Performance level according to EN ISO 13849-1 Level c
SIL according to IEC 61508 2

Packing details

Packing level 1 4047101064049, 4047101064049

Other Technical data

Ambient temperature -25 °C
With monitoring function downstream switching devices No
Cross-/short circuit identification possible No
Type of actuation Magnet

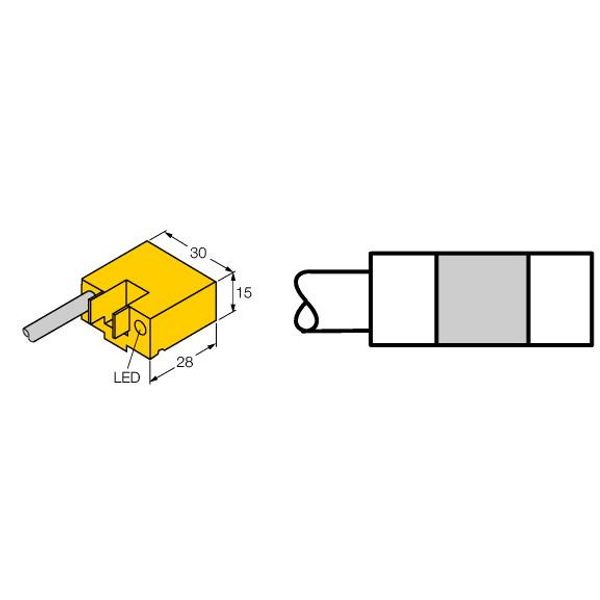

Width sensor 30 mm
Height of sensor 15 mm
Length of sensor 28 mm

Downloads

Product data sheet

Description

Magneetveldsensor, magneetinductieve naderingssensor, Kabellengte 2 m, Rechthoekig, hoogte 15 mm, Actief vlak midden, Kunststof, PA12‐GF30, verhoogde gevoeligheid, DC 2-draads, nom. 8,2 VDC, uitgang volgens DIN EN 60947-5-6 (NAMUR), kabelaansluiting, ATEX-categorie II 2 G, Ex-zone 1, ATEX-categorie II 1 D, Ex-zone 20, SIL 2 (modus voor lage vraag) conform IEC 61508, PL c conform ISO 13849-1 bij HFT0, SIL 3 (modus voor volledige vraag) conform IEC 61508, PL e conform ISO 13849-1 met redundante configuratie HFT1
