Magnetic Field Sensor For Pneumatic Cylinders BIM-UNT-AY1X-0.3-RS4.21/S1139
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
70,25 €
EAN: 4047101195699
MPN: 4685765
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Magnetic Field Sensor For Pneumatic Cylinders BIM-UNT-AY1X-0.3-RS4.21/S1139 |
| Brand | TURCK |
| Categories |
Proximity Sensors
|
| Country of origin | CH |
| Harmonized System Code | 8536 5019 00 |
| Voltage type | DC |
| Housing material | Plastic |
| Suitable for safety functions | No |
| Type of electric connection | Cable with connector |
| Type of switching output | NAMUR |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 1G |
| Explosion safety category for dust | ATEX dust-ex-protection, Cat. 1D |
| Construction type housing | Cuboid |
| Degree of protection (IP) | IP68 |
| Performance level according to EN ISO 13849-1 | None |
Packing details
| Packing level 1 | 4047101195699, 4047101195699 |
Other Technical data
| Ambient temperature | -25 °C |
| With monitoring function downstream switching devices | No |
| Cross-/short circuit identification possible | No |
| Type of actuation | Magnet |

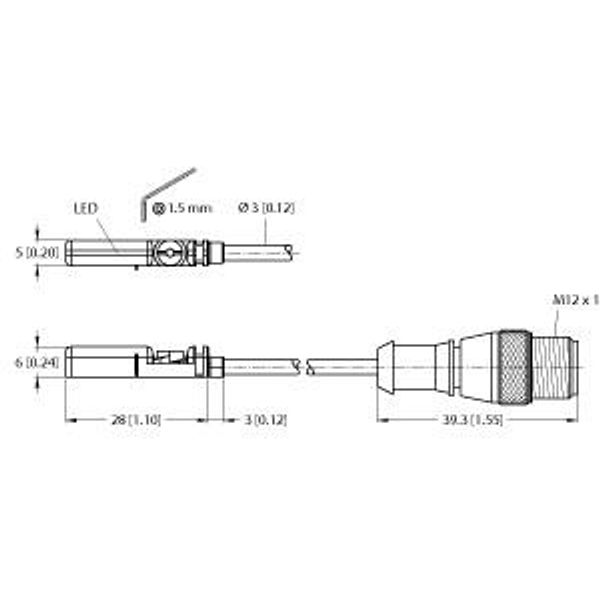

| Width sensor | 5 mm |
| Height of sensor | 6 mm |
| Length of sensor | 28 mm |
Downloads
Description
Magneetveldsensor, Voor pneumatische cilinders, Kabellengte 0.3 m, Voor cilinder met T-gleuf zonder montagetoebehoren, Optionele toebehoren voor montage op andere cilinderbouwvormen, Montage met één hand mogelijk, Stabiele bevestiging, Magneet-resistieve sensor, Lange aanspreekweg, Voor cilinders met grote hefbewegingen, DC 2‐draads, nom. 8,2 V DC, Uitgang conform DIN EN 60947‐5‐6 (NAMUR), Uitgang met binair signaal, N.O.-contact, Pigtail met connector M12 × 1, ATEX-categorie II 1 G, Ex-zone 0, ATEX-categorie II 1 D, Ex-zone 20
