M12 sensor/actuator box 8-way 5-pole
Order only
Price (excl. VAT):
80,62 €
EAN: 4050821054344
MPN: 757-185
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | M12 sensor/actuator box 8-way 5-pole |
| Brand | WAGO |
| Categories |
Accessories for Sensors
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| Rated voltage | 32 V |
| Operating voltage | 10-30 V |
| Max. current carrying capacity per I/O signal | 2 A |
| Max. current carrying capacity per socket | 9 A |
| Number of channels per connector slot | 8 |
| Number of sensor-/actuator-slots | 8 |
| Number of poles sensor/actuator slots | 5 |
Packing details
| Packing level 1 | 4050821054344 |
Other Technical data
| Width | 60 mm |
| Height | 34 mm |
| Colour housing | Other |
| Length | 152 mm |
| Housing material | Plastic |
| Operating temperature | -25-80 °C |
| With potential separation | No |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Material of contact surface | Gold |
| Degree of protection (IP) | IP68 |
| With LED indication | Yes |
| Pollution degree | 3 |
| Connection for NPN-sensors | No |
| Type of branches for sensor-/actuator cables | M12 |
| Thread sleeves sensor/actuator slots | M12 |
| Fix cable version suitable for cable guide chain | No |
| Material insulation body | PA |
| Material contact body | Brass |
Description

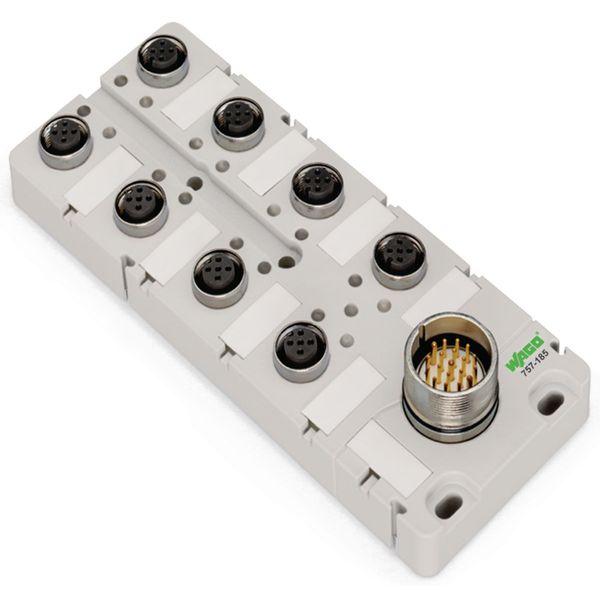

M12 sensor/actuator box 8-way 5-pole M23 connector
