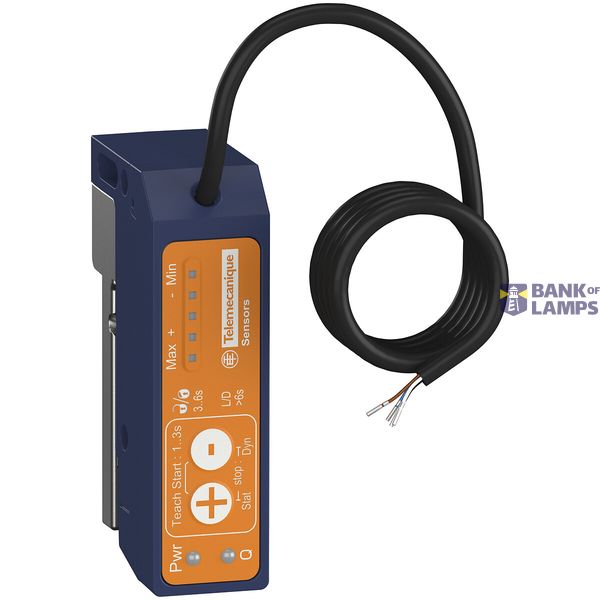

ULTRASONIC Fork 37mm SN 3mm PNP I/O link output Cable 2M (CT à 16 C62) image 1
Telemecanique

ULTRASONIC Fork 37mm SN 3mm PNP I/O link output Cable 2M (CT à 16 C62)

Tikai pasūtījums
EAN: 3666916125328
MPN: XUVU04M3NL2
Iepakojums: 1
Kaste: 16
No pricing modes available.

Tehniskā informācija

Preces stāvoklis Jauns
Ražotāja nosaukums ULTRASONIC Fork 37mm SN 3mm PNP I/O link output Cable 2M (CT à 16 C62)
Zīmols Telemecanique
Kategorijas Fotoelektriskie sensori
Izcelsmes valsts* FR
* Faktiskā izcelsmes valsts var atšķirties atkarībā no piegādes partijas. Lai apstiprinātu konkrēto izcelsmes valsti, lūdzu, sazinieties ar savu klientu menedžeri.
Harmonizētās sistēmas kods 8536 5019 00
ETIM EC002720

Iepakojuma informācija

Iepakojuma līmenis 1 3666916125328
Iepakojuma līmenis 2 3666916125325

Lejupielādes

REACH links DOC CE deklarācija (CE atbilstības deklarācija) Tehniskā rokasgrāmata RoHS deklarācija

Apraksts

This product is part of the XU range, an offer of photoelectric sensors. This ultrasonic fork equipped with a thru-beam system is designed for accurate label detection, with a sensing distance (Sn) of 3mm. It has a very compact design in 60mm that makes its integration easy in any product line, as close as possible to the label deposit and it can operate in very hot environments (+55°C). This sensor presents NPN function and other setting and monitoring functions through IO-Link communication. The HMI disposes of 2 buttons for the setting and a bargraph with 5 LEDs to follow-up the detection status and the quality of teach if the contrast is not satisfactory. It weighs 0.12kg and uses a 2m-long cable with 4 wires. The XUVU forks are dedicated to the packaging market segment. This fork is cULus, UKCA and CE certified. It is Ecolab-certified for packaging and food and beverage applications, guaranteeing long-lasting performance. It is installed via 2 fixation holes. The XUVU range benefits of an innovative architecture and high detection performances. XUVU products feature 3 types of connector, M8, pre-cabled and pigtail to address a wide panel of use cases.
