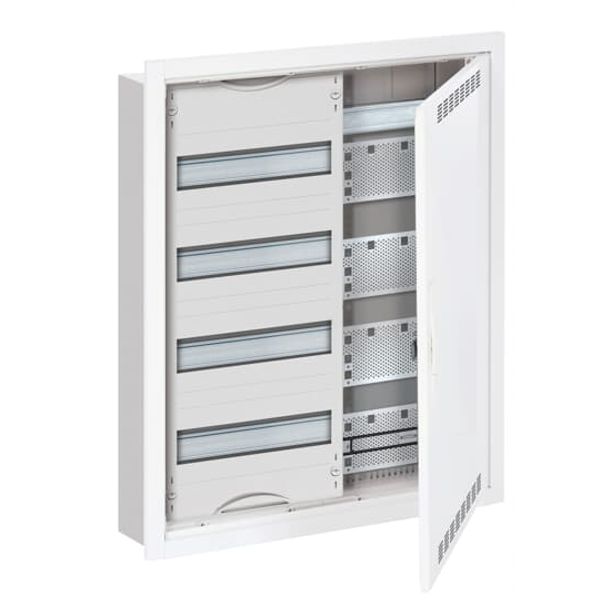

U42MML U Compact distribution board, Flush mounting, 48 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 4, 684 mm x 560 mm x 120 mm image 1

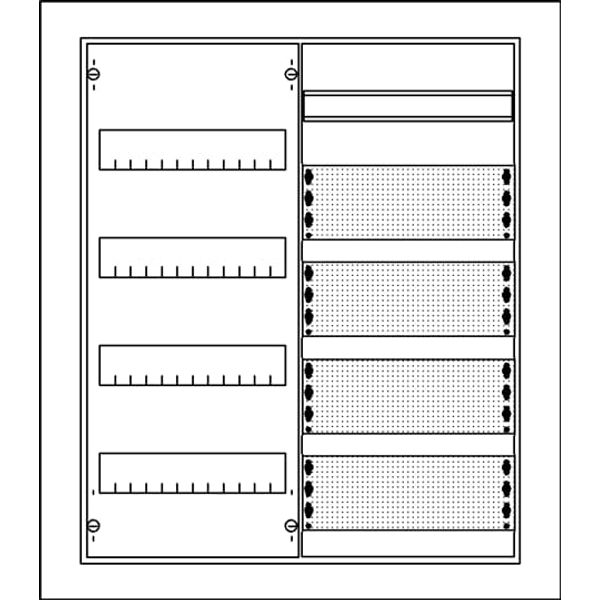

MD01 image 2
U42MML U Compact distribution board, Flush mounting, 48 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 4, 684 mm x 560 mm x 120 mm image 3
MD01 image 4
MD99 image 5
MD99 image 6
MD01 image 7
MD01 image 8
MD99 image 9
U42MML U Compact distribution board, Flush mounting, 48 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 4, 684 mm x 560 mm x 120 mm image 10
U42MML U Compact distribution board, Flush mounting, 48 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 4, 684 mm x 560 mm x 120 mm image 11
U42MML U Compact distribution board, Flush mounting, 48 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 4, 684 mm x 560 mm x 120 mm image 12
U42MML U Compact distribution board, Flush mounting, 48 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 4, 684 mm x 560 mm x 120 mm thumbnail 1
MD01 thumbnail 2
U42MML U Compact distribution board, Flush mounting, 48 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 4, 684 mm x 560 mm x 120 mm thumbnail 3
MD01 thumbnail 4
MD99 thumbnail 5
MD99 thumbnail 6
MD01 thumbnail 7
MD01 thumbnail 8
MD99 thumbnail 9
U42MML U Compact distribution board, Flush mounting, 48 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 4, 684 mm x 560 mm x 120 mm thumbnail 10
U42MML U Compact distribution board, Flush mounting, 48 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 4, 684 mm x 560 mm x 120 mm thumbnail 11
U42MML U Compact distribution board, Flush mounting, 48 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 4, 684 mm x 560 mm x 120 mm thumbnail 12
ABB

U62MM Compact DB 6R media panel

Ir noliktavā: Nē Piegādātāja krājumi: Nē Minimālais pasūtījuma daudzums: 1
Cena (bez PVN):
564,18 € par gab.
Šī cena ir spēkā līdz 24.12.25
EAN: 4011617302902
MPN: 2CPX030290R9999
Iepakojums: 1
Palete: 14
Paredzamais piegādes laiks mūsu noliktavā (aptuveni): 4-6 weeks

Technical Information

Preces stāvoklis Jauns
Ražotāja nosaukums U42MML U Compact distribution board, Flush mounting, 48 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 4, 684 mm x 560 mm x 120 mm
Zīmols ABB
Kategorijas Small Distribution Boards
Harmonizētās sistēmas kods 8538 1000 00
Montāžas metode Iebūvējams vienā līmenī (apmetums)
Mājokļa materiāls Tērauds
Aizsardzības pakāpe (IP) IP30
Vāka modelis Slēgts
Signāls garāmejošajām durvīm No

Iepakojuma informācija

Iepakojuma līmenis 1 4011617302902
Iepakojuma līmenis 2 4011617302902

Citi tehniskie dati

Krāsa Balts
Platums 560 mm
Augstums 684 mm
Dziļums 120 mm
RAL numurs 9016
Ar montāžas plāksni Yes
Iebūvēts dziļums 120 mm
Rindu skaits 4
Iebūvētais augstums 684 mm
Pārsega veids Durvis
Iebūvētais platums 560 mm
EMC versija No
Iespējama pagarināšana No
Iekšējais dziļums 106 mm
DIN-sliede Yes
Platums moduļu atstarpju skaitā 24
Slēgšanas veids Citi
Caurspīdīgs vāks/durvis No
Ar slēdzeni Yes
Zemējuma spaiļu bloks Yes
Neitrāls spaiļu bloks Yes

Lejupielādes

Citi Produkta datu lapa

Apraksts

Compact distribution board, series U, partly assembled cabinet, for the internal use, with closed doorframe and door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP30, applicable standards: EN 61439-1, EN 61439-3, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, Powder-coated, in RAL 9016, enclosure out of sheet steel, ventilated metal door, door out of sheet steel, in RAL 9016, with Standard closure, door opening angle 120 degree, door hinge right or left, cable entry on top via nippel flange included, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 684 x 560 x 120, Shutter frame dimensions in mm (H x W x D): 694 x 604 x 27, Grid unit 4 GU, panel width 2, Space units 48, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, RAL 7035, with N/PE Quick-terminal, cable fastening rail integrated, Assembled with distribution module + multimedia module, device support removable
