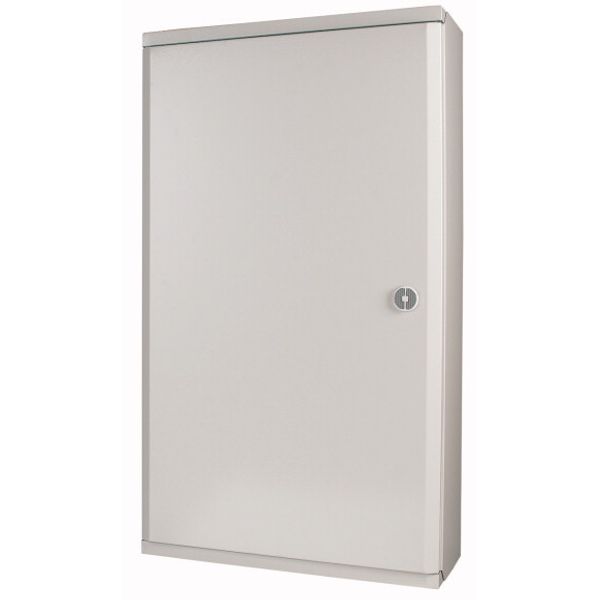

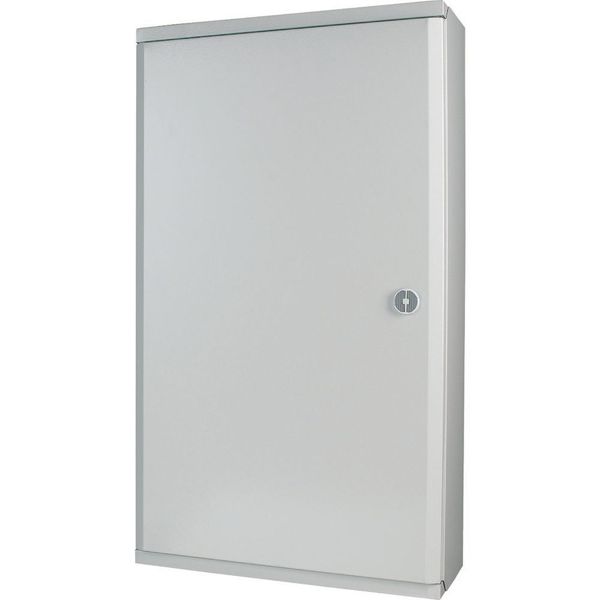

Surface-mount service distribution board with three-point turn-lock, including DIN rails, front plate with 45-mm cutout, W = 800 mm, H = 1060 mm white
Technical Information
| Preces stāvoklis | Jauns |
| Ražotāja nosaukums | Distribution board BP-O-800/10-C-W surface-mount 800×1060mm white |
| Zīmols | EATON |
| Kategorijas |
Small Distribution Boards
|
| Izcelsmes valsts* | CZ |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonizētās sistēmas kods | 8538 1000 00 |
| Montāžas metode | Virsmas montāža (apmetums) |
| Mājokļa materiāls | Tērauds |
| Aizsardzības pakāpe (IP) | IP30 |
| Vāka modelis | Slēgts |
| Signāls garāmejošajām durvīm | No |
Iepakojuma informācija
| Iepakojuma līmenis 1 | 4015081053162 |
Citi tehniskie dati
| Krāsa | Balts |
| Platums | 800 mm |
| Augstums | 1060 mm |
| Dziļums | 262.5 mm |
| RAL numurs | 9016 |
| Ar montāžas plāksni | No |
| Iebūvēts dziļums | 280 mm |
| Rindu skaits | 6 |
| Iebūvētais augstums | 1075 mm |
| Pārsega veids | Durvis |
| Iebūvētais platums | 815 mm |
| EMC versija | Yes |
| Iespējama pagarināšana | Yes |
| Iekšējais dziļums | 257.5 mm |
| DIN-sliede | Yes |
| Platums moduļu atstarpju skaitā | 35 |
| Slēgšanas veids | Citi |
| Caurspīdīgs vāks/durvis | No |
| Ar slēdzeni | No |
| Zemējuma spaiļu bloks | No |
| Neitrāls spaiļu bloks | No |
Apraksts
Surface-mounted service distribution board with cam lock - completely assembled, IP30, white, RAL 9016, width 800 mm, outside height 1060 mm, 210 HP, 6 rows, incl. base frame, enclosure side plates, base/roof panels and door, includes BPZ-DINR...B DIN-rail kits, includes front plates (150 mm ) with device cutout (45 mm), includes top cable entry, with push-through flange, additional cable entry at the bottom, with push-through flange, with blanking bottom panels, mounted on base frame - no MSW mounting kit, module design, earthed metal covers, completely mounted, can be grouped, ample wiring area , variable interior fittings with or without removable mounting frame, well-structured, multilayered design for easily accessible installation: base frame - DIN-rails ... - enclosure, door can be right-hand or left-hand door
