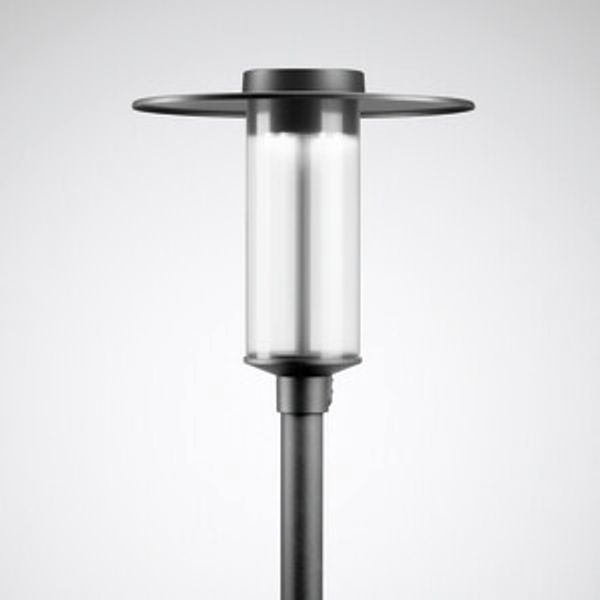

Post-top luminaires Lumantix Zylinder (LTX Z) CLO (normal) Lens Anthracite ET 11W 1200lm 70 asymmetric wide (AB2L) IP65 IK10 5 SDCM 7302840

Decorative post-top luminaire in cylindrical form with canopy. With an intelligent label for quick access to luminaire information by means of QR code. With power reduction via control circuit. Switching off a control circuit causes the luminaire luminous flux to be set to 50%. Passender Mast auf Anfrage. As MLT version (Multi-Lens Technology), consisting of highly efficient UV and temperature-resistant lens systems in 4-fold configurations. With asymmetric wide light distribution. For lighting roads according to P lighting classes. Further beam characteristics are available for flexible adaptation to customer-specific lighting tasks. Retrofitting a rear / side shield is possible as an accessory to be ordered separately. Luminaire luminous flux and light color fixed, with luminous flux stabilization at end of life (CLO). Luminaire luminous flux 1200 lm, connected load 10,5 W, maximum luminous efficiency of luminaire 114 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 70. Colour locus tolerance (initial MacAdam) ≤ 5 SDCM. Further LED light colours available on request. Mean rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body of cast aluminium. Luminaire canopies of corrosion-resistant aluminium. Surface anthracite coated (DB 703). Sea weather-suitable coating on request. Diffuser of highly impact-resistant PMMA, translucent. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP65, impact resistance level in accordance with IEC 62262: IK10. Mast available upon request. Windage area fw 0,120 m2. Weight: 8,0 kg. With assembled connection cable 6 m. With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Surge voltage resistance Differential Mode / Common Mode: 6 kV / 10 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
