NUMERIC KEYPAD FOR ACCESS CONTROL - RGB BACKLIGHT TOUCH DISPLAY. INTEGRATED MIFARE READER. PROTECTED OUTDOOR INSTALLATION. BLACK COLOR.

NUMERIC KEYPAD FOR ACCESS CONTROL - RGB BACKLIGHT TOUCH DISPLAY. INTEGRATED MIFARE READER. PROTECTED OUTDOOR INSTALLATION. BLACK COLOR.

Ir noliktavā: Nē Piegādātāja krājumi: Nē Minimālais pasūtījuma daudzums: 1

Cena (bez PVN):

184,44 €

Šī cena ir spēkā līdz 24.12.25

EAN: 8008379505722

MPN: 442MBTC-TN

Iepakojums: 1

Paredzamais piegādes laiks mūsu noliktavā (aptuveni): Pēc pieprasījuma

Technical Information

Preces stāvoklis	Jauns
Ražotāja nosaukums	NUMERIC KEYPAD FOR ACCESS CONTROL - RGB BACKLIGHT TOUCH DISPLAY. INTEGRATED MIFARE READER. PROTECTED OUTDOOR INSTALLATION. BLACK COLOR.
Zīmols	AVE
Kategorijas	Citi produkti

Iepakojuma informācija

Iepakojuma līmenis 1

8008379505722

Apraksts

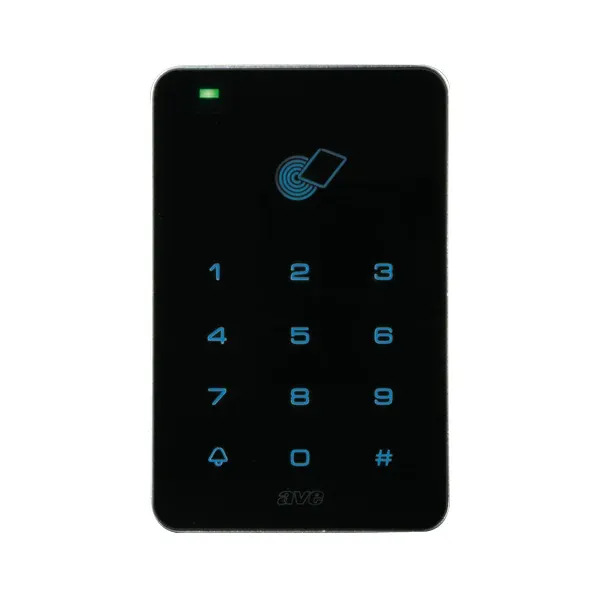

Black numeric keypad for access control with RGB backlighting of the numbers. Allows you to access the gate by entering a valid code. Through the WEB SERVER (53AB-WBS) and the AVECLOUD APP it is possible to create codes and monitor the history of passages. The keyboard is capable of reading MIFARE cards. Wall-mounted installation on boxes art.: 2501, 2501P, 2501CG, 2502. The installation of a maximum of 15 devices downstream of a web server is permitted. If it is necessary to exceed the number of 15 devices, it is necessary to add a second supervision web-server and create a second bus separate from the first. The MODBus wiring of the devices MUST be Daisy chain (in/out) type. The maximum time interval between entering a code on the keypad and the actual actuation of the relay is: n°5 art. 442MBTC-TN: 800 msec n°10 art. 442MBTC-TN: 1.3 sec n°15 art. 442MBTC-TN: 1.8 sec IP40 protection rating. Dimensions (LxHxD): 75x117x22 mm.
