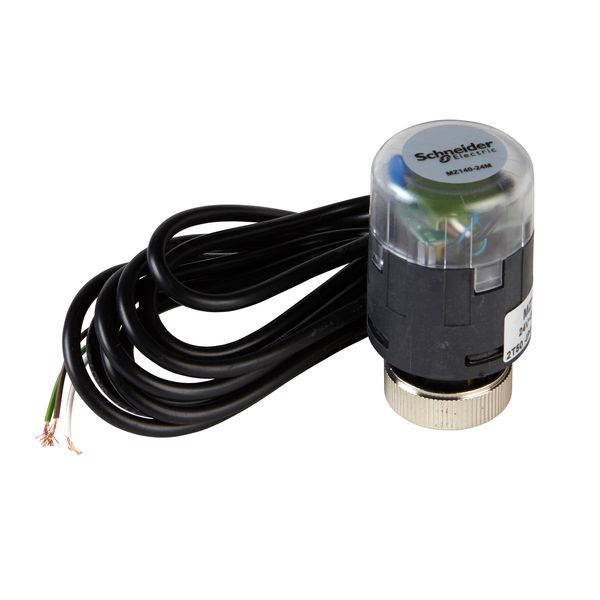

MZ140 Thermal Zone Valve Actuator, Modulating (2-10 Vdc), Normally closed, 24 Vac, 140 N, IP41...IP44

Tikai pasūtījums
Cena (bez PVN):
94,88 €
Šī cena ir spēkā līdz 08.01.26
EAN: 3606489660499
MPN: MZ140-24M
Iepakojums: 1
Paredzamais piegādes laiks mūsu noliktavā (aptuveni): 4-6 weeks

Technical Information

Preces stāvoklis Jauns
Ražotāja nosaukums MZ140 Thermal Zone Valve Actuator, Modulating (2-10 Vdc), Normally closed, 24 Vac, 140 N, IP41...IP44
Zīmols Schneider Electric
Kategorijas HVAC Controllers
Izcelsmes valsts* IT
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Modelis Citi
Funkcija Deaktivizēta, kad aizvērta NC
Nominālā jauda 2 VA
Vadības signāls Citi
Apkārtējās vides temperatūra 2-50 °C
Aizsardzības pakāpe (IP) IP44
Savienojums ar apturēšanas vārstu M30 x 1,5
Darbības laiks 360 s
Gājiena garums 2.5 mm
Ar pozīcijas indikatoru No
Maks. elektriskās strāvas ievade 0 VA
Barošanas spriegums 24 V MAIŅSTRĀVA
Palīgkontakti Yes

Iepakojuma informācija

Iepakojuma līmenis 1 3606489660499

Citi tehniskie dati

Krāsa Melns
Platums 98 mm
Augstums 54 mm
Kabeļa garums 1.5 m
Diametrs 42 mm
Garums 128 mm
Piemērots manuālai darbībai No
Automātiska ceļojumu atpazīšana No
Aizsargāts pret pārspriegumu No
Vispirms atvērts No
Ar gala kontaktiem Yes

Lejupielādes

Apraksts

The MZ14-24M is a thermoelectric actuator designed to provide modulating control together with the VZ*8* zone valve. The MZ14-24M actuator at power off or Vdc control signal will ensure the VZ*8* zone valve is closed. With a control signal of 1 Vdc the actuator will fully open the valve. Nominal Power Supply 21.8…26.8 Vac. Stem force 14N. Protection class IP44 for vertical mounting, IP141 for Horizontal mounting. Stroke 2. 5 mm. EMC 244/18/CE, LVD 266/95/CE.
