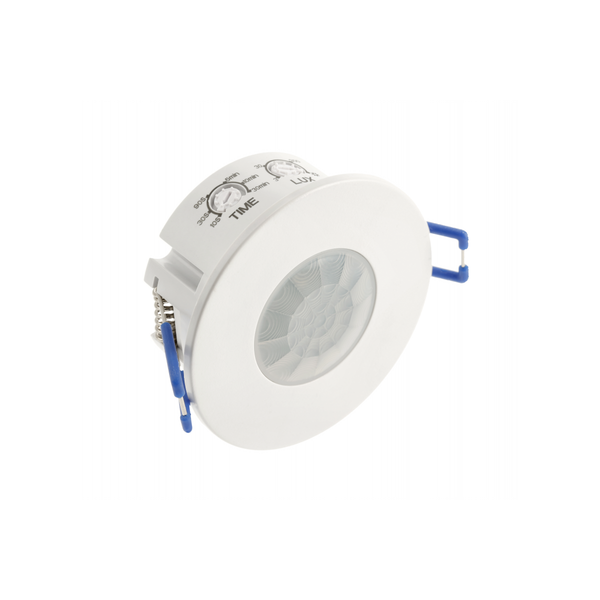

Motion sensor CR-22, max. 1200 W, detection angle 360°, range 8 m ± 1.8-4 m, IP20, white image 1

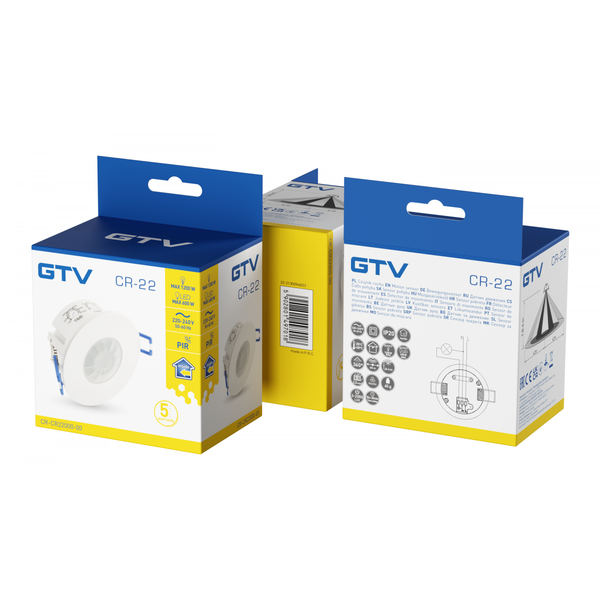

Motion sensor CR-22, max. 1200 W, detection angle 360°, range 8 m ± 1.8-4 m, IP20, white image 2
Motion sensor CR-22, max. 1200 W, detection angle 360°, range 8 m ± 1.8-4 m, IP20, white thumbnail 1
Motion sensor CR-22, max. 1200 W, detection angle 360°, range 8 m ± 1.8-4 m, IP20, white thumbnail 2
GTV Lighting

Motion sensor CR-22, max. 1200 W, detection angle 360°, range 8 m ± 1.8-4 m, IP20, white

Tikai pasūtījums
Cena (bez PVN):
5,37 €
Šī cena ir spēkā līdz 31.12.25
EAN: 5902801497018
MPN: CR-CR22000-00
Iepakojums: 1
Kaste: 50
Palete: 1600
Paredzamais piegādes laiks mūsu noliktavā (aptuveni): 2-4 weeks

Technical Information

Preces stāvoklis Jauns
Ražotāja nosaukums Motion sensor CR-22, max. 1200 W, detection angle 360°, range 8 m ± 1.8-4 m, IP20, white
Zīmols GTV Lighting
Kategorijas Motion & Presence Sensors
Harmonizētās sistēmas kods 8536 5080 00
Nominālais spriegums 220-240
Aizsardzības pakāpe (IP) IP20

Iepakojuma informācija

Iepakojuma līmenis 1 5902801497018
Iepakojuma līmenis 2 5902801497025
Iepakojuma līmenis 3 2012801547934
Iepakojuma līmenis 4 2012801547941

Lejupielādes

Produkta datu lapa Lietošanas instrukcija DOC CE deklarācija (CE atbilstības deklarācija)

Apraksts

The CR-22 motion sensor is an advanced ceiling mounting device ideal for monitoring large spaces thanks to its wide 360-degree detection angle and 8-meter detection range. Adjustable back-up time and sensitivity to daylight allow you to adjust the operation of the sensor to the individual needs of the user.

The recommended installation height is between 1.8 and 2.5 meters for optimal efficiency. The sensor complies with the IP20 protection class, which means that it is resistant to the ingress of solid objects larger than 12 mm, however, it is not waterproof. The product is designed to operate in a wide range of temperatures, from -20 to +40 degrees Celsius. The mounting hole should have a diameter between 63 and 66 mm. It is the perfect solution for commercial and private use.

  • Wide Detection Angle: The CR-22 motion sensor offers a 360-degree detection range with a range of up to 8 meters, ideal for monitoring large spaces.
  • Adjustable: Adjustable lighting time and daylight sensitivity, allowing you to have full control over the device's performance.
  • Suitable for ambient conditions: IP20 protection class and permissible ambient temperature range from -20 to +40 degrees Celsius for durability and reliability in a wide range of conditions.
