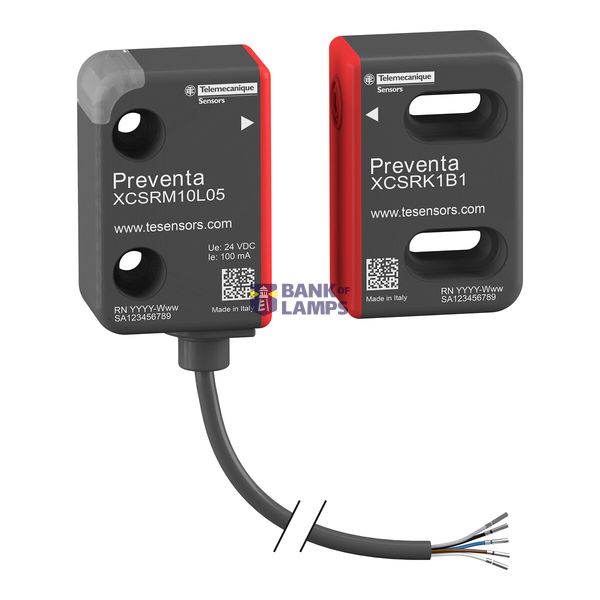

Miniature Safety RFID switch, unique pairing, single model, 5-pin, 5m image 1
Telemecanique

Miniature Safety RFID switch, unique pairing, single model, 5-pin, 5m

Tikai pasūtījums
EAN: 3666916099865
MPN: XCSRM10L05
Iepakojums: 1
Kaste: 8
No pricing modes available.

Tehniskā informācija

Preces stāvoklis Jauns
Ražotāja nosaukums Miniature Safety RFID switch, unique pairing, single model, 5-pin, 5m
Zīmols Telemecanique
Kategorijas Pozīcijas slēdži
Izcelsmes valsts* IT
* Faktiskā izcelsmes valsts var atšķirties atkarībā no piegādes partijas. Lai apstiprinātu konkrēto izcelsmes valsti, lūdzu, sazinieties ar savu klientu menedžeri.
Harmonizētās sistēmas kods 8536 5080 00
ETIM EC002593

Iepakojuma informācija

Iepakojuma līmenis 1 3666916099865
Iepakojuma līmenis 2 3666916099862

Lejupielādes

REACH links RoHS deklarācija DOC CE deklarācija (CE atbilstības deklarācija) Citi Tehniskā rokasgrāmata

Apraksts

This RFID safety switch is part of the Preventa XCS range, a Telemecanique Sensors' offer of safety detection solutions. It is identified by a factory individual code which supports one unique factory pairing. It is a single model switch for point to point connection. Thanks to its miniature format, it can adjust even in tight places. It has an assured operating distance of 10mm and an assured release distance of 25mm​. It is equipped with a 5-pin M12 remote connector at the end of a 0.15m-long cable. Its dimensions are 28.5mm (width) x 18mm (depth) x 42mm (height). It weighs 0.056kg. RFID safety switches are used on machines with low inertia. It is Tüv, cULus, FCC and ECOLAB certified and complies to CE and UKCA standards. It operates with a 24Vdc power supply. Contactless safety switches are specifically designed for industrial machines fitted with doors, covers or guards with imprecise guiding. They are ideally suited for machines subjected to frequent washing or liquid spray. Safety switches protect operators by controlling the safe opening and interlocking of guards and covers in your installations.
