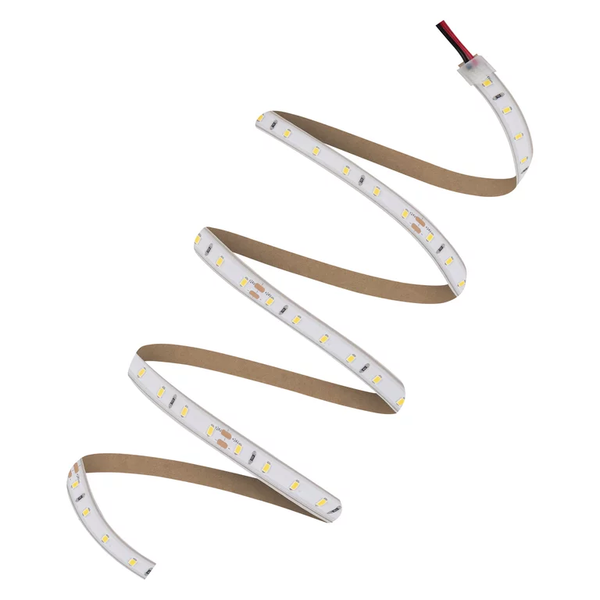

LED STRIP VALUE-600 30 meter reel -600/840/30/IP65
Technical Information
| Preces stāvoklis | Jauns |
| Ražotāja nosaukums | LED STRIP VALUE-600 30 meter reel -600/840/30/IP65 |
| Zīmols | LEDVANCE |
| Kategorijas |
Viegla lente- / šļūtene / sloksne
|
| Izcelsmes valsts | CN |
| Harmonizētās sistēmas kods | 8539 5100 00 |
| Platums | 10 mm |
| Stara leņķis | 110 ° |
| Krāsu atveidošanas indekss CRI | 80-89 |
| Garums | 30000 mm |
| Aizsardzības pakāpe (IP) | IP65 |
| Lampas jauda uz metru | 6.1 W |
| Lampas spriegums | 24 V |
| Krāsu temperatūra | 4000 K |
| Gaismas plūsma uz metru | 600 lm |
Iepakojuma informācija
| Iepakojuma līmenis 1 | 4058075597471 |
| Iepakojuma līmenis 2 | 4058075600867 |
| Iepakojuma līmenis 3 | 4058075597471 |
Citi tehniskie dati
| Savienojuma veids | Iebīdāma skava |
| Sprieguma veids | DC |
| Pašlīmējošs | Yes |
| Piemērots dimmeram | No |
| Stabu skaits | 2 |
| Ar aizsargapvalku | Yes |
| Zemākais lieces rādiuss | 15 mm |
| Atsevišķu segmentu garums | 100 mm |
| Ar savienojuma komplektu | No |
| Ar gala gabalu | No |
| Mezglu skaits uz metru | 60 |
| Maks. sistēmas jauda | 27.5 W |
| Gaismas krāsa | Balts |
| Pastāvīga gaismas jauda (CLO) | No |
| Ir pieejams IFTTT atbalsts | No |
| Elektroinstalācijas veids | Ietverta caurvadi |
| Nominālais kalpošanas laiks L70/B50 pie 25 °C | 20000 h |
| Savietojams ar Apple HomeKit | No |
| Savietojams ar Google palīgu | No |
| Savietojams ar Amazon Alexa | No |
| Regulējams gaismas plūsma | Nepārtraukti maināms |
| Maināms vadības mehānisms | No |
Lejupielādes
Apraksts
IP65 protected LED strips 30m long with 600 lm/m for general applications. Product features: Flexible and cuttable LED strip. Luminous flux: 600 lm/m. Color rendering index Ra: > 80. Lifetime (L70/B50): up to 20,000 h at Tc max.: 75°C. Smallest cuttable unit: 100 mm. Available with color temperature: 3,000 K, 4,000 K, 6,500 K. Type of protection: IP65. Dimmable with suitable drivers, see also www.ledvance.com/dim. Product benefits: Long LED strips for customized solutions made to measure. Great design freedom thanks to flexibility and cuttability of module. Suitable for use in damp conditions thanks to high type of protection. Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back. Maximum flexibility due to large range of accessories. Easy installation, no tools required for connection. Areas of application: General outdoor illumination. Cove lighting. Bars, restaurants, hotels. Residential interiors. Equipment / Accessories: Connectors, profiles and covers for several mounting options available.
