L 108 B 30 H 21 colour: white 220 - 240 V

L 108 B 30 H 21 colour: white 220 - 240 V image 1

L 108 B 30 H 21 colour: white 220 - 240 V image 2

L 108 B 30 H 21 colour: white 220 - 240 V image 3

L 108 B 30 H 21 colour: white 220 - 240 V image 4

RZB

L 108 B 30 H 21 colour: white 220 - 240 V

Ir noliktavā: Nē Piegādātāja krājumi: Nē Minimālais pasūtījuma daudzums: 1

Cena (bez PVN):

193,60 €

Šī cena ir spēkā līdz 24.12.25

EAN: 4051859577836

MPN: 982709.002

Iepakojums: 1

Paredzamais piegādes laiks mūsu noliktavā (aptuveni): 4-6 weeks

Technical Information

Preces stāvoklis	Jauns
Ražotāja nosaukums	L 108 B 30 H 21 colour: white 220 - 240 V
Zīmols	RZB
Kategorijas	Push Buttons
Izcelsmes valsts	DE
Harmonizētās sistēmas kods	8537 1098 00
Modelis	Vadības bloks

Iepakojuma informācija

Iepakojuma līmenis 1

4051859577836, 4051859577836

Citi tehniskie dati

Platums	30 mm
Augstums	21 mm
Dziļums	108 mm
Ir pieejams IFTTT atbalsts	No
Savietojams ar Apple HomeKit	No
Savietojams ar Google palīgu	No
Savietojams ar Amazon Alexa	No

Apraksts

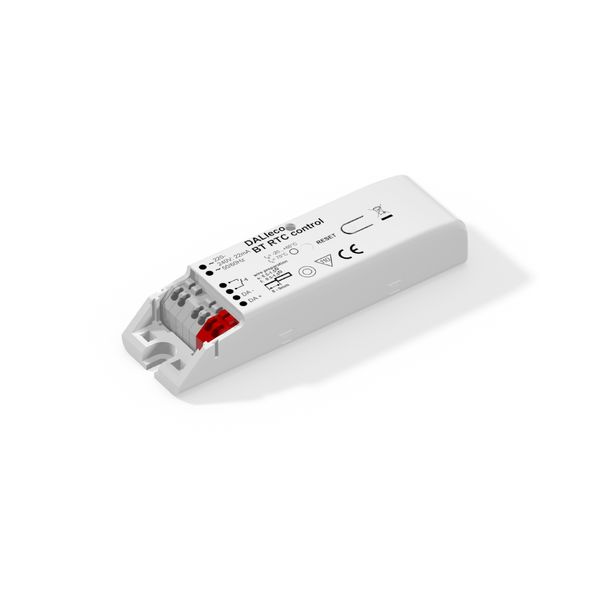

Compact light control unit with DALI interface. Housing: plastic, white. Control and adjustment of all setting options for the lighting by smartphone. Integrated clock for time-controlled brightness or colour temperature control (HCL). Adaptable HCL characteristic with up to 24 points. Daylight-dependent control and presence-dependent light control. Pushbutton interface for separate operation of brightness and colour temperature. Control of standard white or tunable white light in accordance with DALI device type 8 (DT8). One DALI output channel (broadcast or groupcast). Suitable for up to 32 DALI luminaires. Outputs with electronically reversible overtemperature, short-circuit and overload protection. Integrated DALI bus supply. Length of the DALI control cable up to 300 m. Supports up to 4 DALI sensors (982757.002) and pushbutton couplers (982755.002). Sensor and pushbutton coupler are available as accessories and must be ordered separately. Up to 50 m cable length to button. Scenarios can be called up via pushbutton coupler. Wireless firmware update by Bluetooth® possible. Suitable for installation in luminaires or external operation with strain relief. Strain relief (982845.0077) must be ordered separately.
