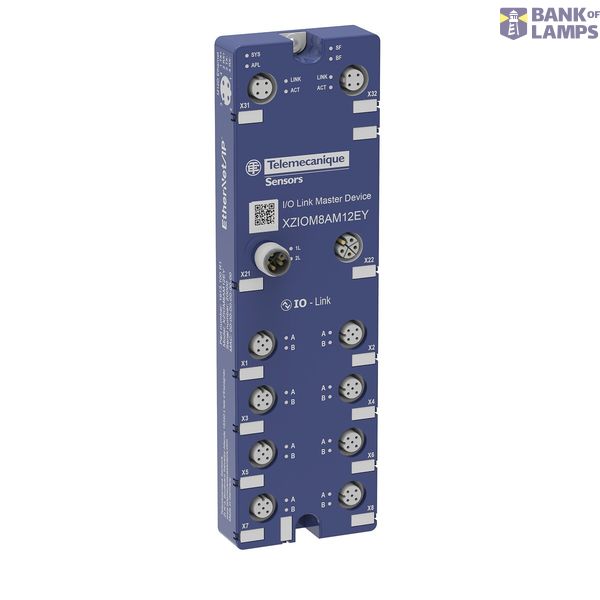

IO Link Master, 8 ports, Class A, IP67, M12, Ethenet/IP, 24VDC (CT à
Tikai pasūtījums
EAN: 3666916109212
MPN: XZIOM8AM12EY
Iepakojums: 1
No pricing modes available.
Tehniskā informācija
| Preces stāvoklis | Jauns |
| Ražotāja nosaukums | IO Link Master, 8 ports, Class A, IP67, M12, Ethenet/IP, 24VDC (CT à |
| Zīmols | Telemecanique |
| Kategorijas |
PLC bloki un I & O moduļi
|
| Izcelsmes valsts* | DE |
| * Faktiskā izcelsmes valsts var atšķirties atkarībā no piegādes partijas. Lai apstiprinātu konkrēto izcelsmes valsti, lūdzu, sazinieties ar savu klientu menedžeri. | |
| Harmonizētās sistēmas kods | 8536 5019 00 |
| ETIM | EC001417 |
| Paplašināms | No |
| Ar displeju | No |
| Digitālo ieeju skaits | 16 |
| Digitālo izeju skaits | 16 |
| Analogo ieeju skaits | 0 |
| Analogo izeju skaits | 0 |
| Barošanas sprieguma sprieguma veids | DC |
| Rūpniecisko Ethernet interfeisu skaits | 1 |
| Citu HW interfeisu skaits | 0 |
| Atbalsta protokols TCP/IP | Yes |
| SUCONET atbalsta protokols | No |
| Ar releja izeju | No |
| Aizsardzības pakāpe (IP) | IP65/IP67 |
| Paplašināšanas ierīce | No |
| Pamata ierīce | Yes |
| Atbalsta protokols EtherNet/IP | Yes |
| Atbalsta protokols SafetyBUS lpp | No |
| Barošanas spriegums DC | 18-31 V |
Iepakojuma informācija
| Iepakojuma līmenis 1 | 3666916109219, 3666916109212 |
Citi tehniskie dati
| Platums | 60 mm |
| Augstums | 200 mm |
| Dziļums | 32 mm |
| Pārslēgšanas strāva | 16 A |
| Ar laika slēdža pulksteni | No |
| Piemērots drošības funkcijām | No |
| Atbalsta protokols LON | No |
| HW interfeisu skaits RS-232 | 0 |
| HW interfeisu skaits RS-422 | 0 |
| HW interfeisu skaits RS-485 | 0 |
| HW interfeisu sērijas TTY skaits | 0 |
| HW interfeisu skaits USB | 0 |
| Paralēlo HW interfeisu skaits | 0 |
| Ar optisko interfeisu | No |
| Atbalsta protokols ASI | No |
| PROFIBUS atbalsta protokols | No |
| Atbalsta protokols CAN | No |
| INTERBUS atbalsta protokols | No |
| KNX atbalsta protokols | No |
| Modbus atbalsta protokols | No |
| Atbalsta protokols Data-Highway | No |
| Atbalsta protokols DeviceNet | No |
| Atbalsta protokols citām kopņu sistēmām | No |
| Atlaišana | No |
| Iespējama montāža uz sliedēm | No |
| Sprādziendrošības kategorija gāzei | Nav |
| Eksplozijas drošības kategorija putekļiem | Nav |
| Papildu darbības aģents (ex ia) | No |
| Papildu darbības aģents (Ex ib) | No |
| SERCOS atbalsta protokols | No |
| INTERBUS drošības atbalsta protokols | No |
| PROFINET saskarņu skaits | 0 |
| Bezvadu HW interfeisu skaits | 0 |
| Iespējams iebūvēts priekšpusē | Yes |
| Iespējama montāža uz plaukta | No |
| Montāža pie sienas/tiešā montāža | Yes |
| Radio standarta Bluetooth | No |
| Radio standarta Wi-Fi 802.11 | No |
| IO saišu meistars | Yes |
| Veiktspējas līmenis saskaņā ar EN ISO 13849-1 | Nav |
| Atbalsta protokols AS-interfeisa drošībai darbā | No |
| DeviceNet Safety atbalsta protokols | No |
| Atbalsta protokols Foundation Fieldbus | No |
| PROFINET CBA atbalsta protokols | No |
| PROFINET IO atbalsta protokols | No |
| PROFIsafe atbalsta protokols | No |
| Radio standarta GPRS | No |
| Radio standarts GSM | No |
| Radio standarts UMTS | No |
| SIL saskaņā ar IEC 61508 | Nav |
Lejupielādes
REACH links
Tehniskā rokasgrāmata
DOC CE deklarācija (CE atbilstības deklarācija)
RoHS deklarācija
Citi
Apraksts
The IO-Link Master is a part of the IO-Link solution, to be used with controllers with the Ethernet/IP fieldbus protocol. The IO-Link Master has 8 Class A ports, where both IO-Link and non-IO-Link devices can be connected. The IO-Link Master has an IP67-rated housing. It also has an integrated OPC UA server that can connect to up to 2 OPC UA clients. Its two galvanically separated power supply lines can carry current up to 16A at 24V DC input. The device is designed to operate in temperatures ranging from -20 to 70°C. It comes equipped with integrated sensors that can monitor the current, voltage, and temperature of each port. The IO-Link Master device can communicate through the MQTT protocol, which can be configured both through the Web-configurator and the 'Simply Config IO-Link' Configuration software. The configurator is password-protected, and the user can create different profiles like Admin, Operator and Maintenance with different access to the configuration options. The device has a plastic body with IP65 and IP67 rating. It is designed for use in various industrial applications such as packaging, materials handling, conveying, machining, food and beverage. However, it can be connected to any IO-link sensors that require less than 3A power for functioning. The IO-Link Master complies with EMC guidelines on emission (EN IEC 61000-6-4, BS EN 61000-6-4) and immunity (EN IEC 61000-6-2, BS EN 61000-6-2). It is also CE- and UKCA-conformant. The device is compatible with both IO-Link and non-IO-Link devices. It can be integrated into the fieldbus using the Ethernet/IP protocol. The package includes the IO-Link Master, 8 labelling stickers, and 8 plugs for the unused ports on the device. The device can be powered up using the L-Coded M12 cables, and can be connected in daisy chain mode with multiple devices.
