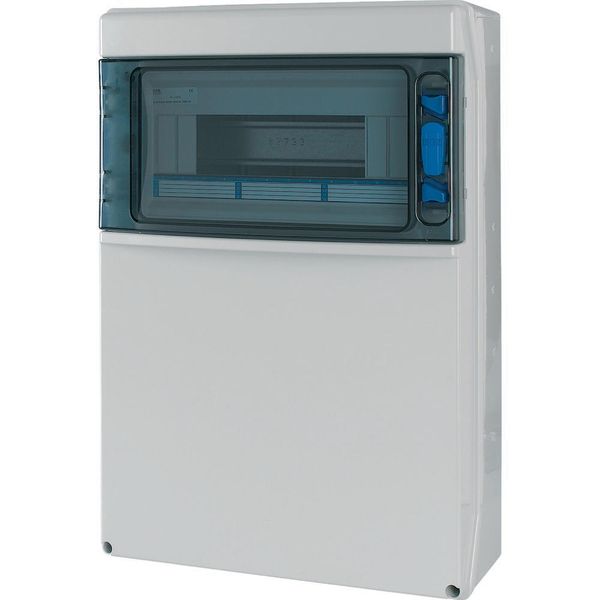

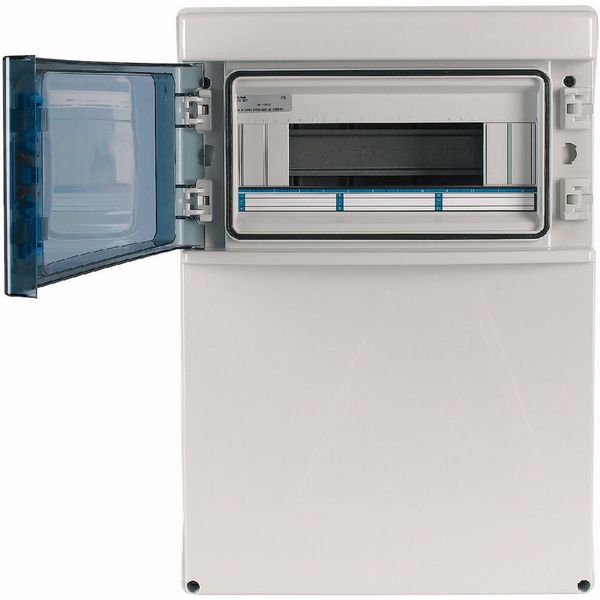

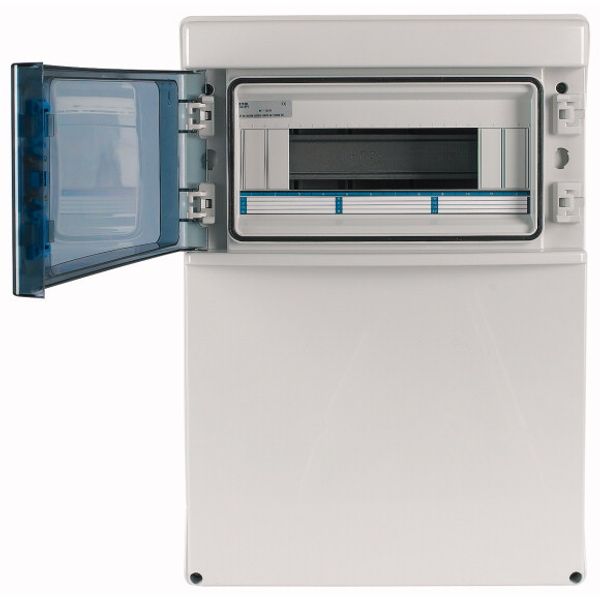

IKA professional distribution board, IP65 + clamps + mounting plate for built-in sockets
Tikai pasūtījums
Cena (bez PVN):
42,51 €
EAN: 4015081824144
MPN: 187356
Iepakojums: 1
Paredzamais piegādes laiks mūsu noliktavā (aptuveni):
1-4 weeks
Technical Information
| Preces stāvoklis | Jauns |
| Ražotāja nosaukums | IKA-C-1/12-ST-X IKA professional distribution board, IP65 + clamps + mounting plate for built-in sockets |
| Zīmols | EATON |
| Kategorijas |
Small Distribution Boards
|
| Izcelsmes valsts | ES |
| Harmonizētās sistēmas kods | 8538 1000 00 |
| Montāžas metode | Virsmas montāža (apmetums) |
| Mājokļa materiāls | Plastmasas |
| Aizsardzības pakāpe (IP) | IP65 |
| Vāka modelis | Slēgts |
| Signāls garāmejošajām durvīm | No |
Iepakojuma informācija
| Iepakojuma līmenis 1 | 4015081824144 |
Citi tehniskie dati
| Krāsa | Pelēks |
| Platums | 310 mm |
| Augstums | 436 mm |
| Dziļums | 147 mm |
| RAL numurs | 7035 |
| Ar montāžas plāksni | No |
| Iebūvēts dziļums | 127 mm |
| Rindu skaits | 1 |
| Iebūvētais augstums | 0 mm |
| Pārsega veids | Durvis |
| Iebūvētais platums | 0 mm |
| EMC versija | No |
| Iespējama pagarināšana | Yes |
| Iekšējais dziļums | 50.5 mm |
| DIN-sliede | Yes |
| Platums moduļu atstarpju skaitā | 12 |
| Slēgšanas veids | Citi |
| Caurspīdīgs vāks/durvis | Yes |
| Ar slēdzeni | No |
| Zemējuma spaiļu bloks | No |
| Neitrāls spaiļu bloks | No |
Apraksts

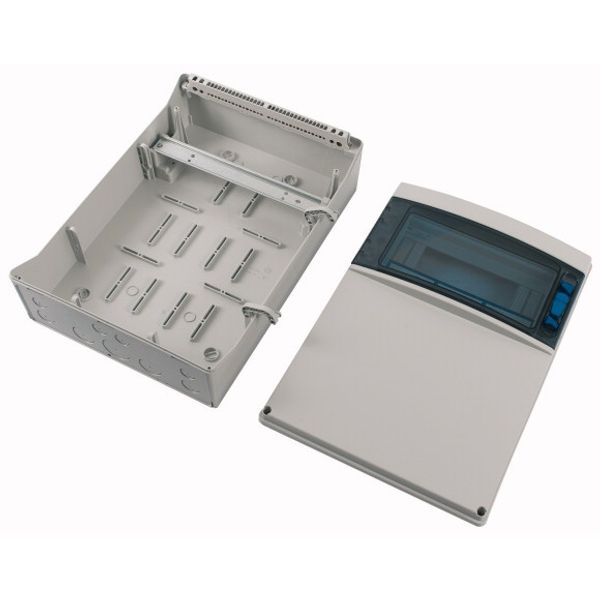

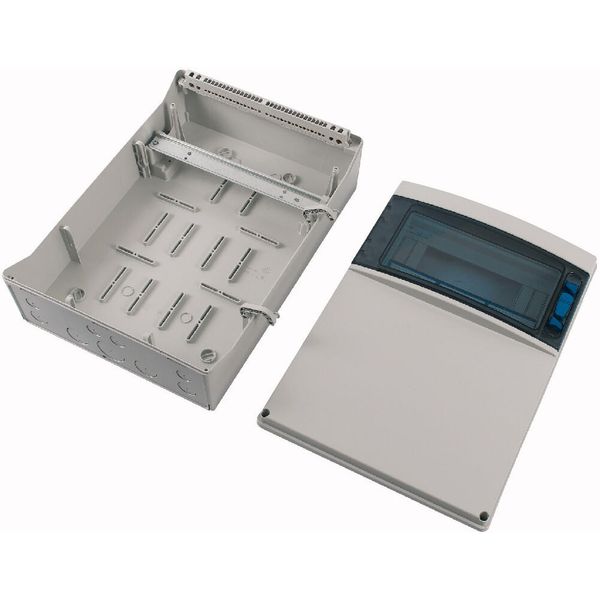

IKA damp location compact distribution board; RAL 7035, with neutral and protective conductor terminals; CNC foamed-in-place gasket for IP65 degree of protection as defined in IEC/EN 62208; 18 space units; single-row; UV-stable as defined in DIN EN ISO 4892-2; approved for building service distribution boards conforming to IEC/EN 61439-3 VDE 0660-600-3; integrated module compensation for various device widths; metric cable knockouts with centering point: 100% polycarbonate enclosure (UV-resistant) ; for installing switchgear and protective devices as per dimensional standard DIN 43 880 with 70 mm or 85 mm mounting depth; 1000 VAC, 1500 VDC; RoHs-compliant; made up of a plastic bottom part with a DIN-rail made of galvanized sheet steel; DIN-rail depth-adjustable in 2 positions; direct mounting on wall mounting holes; finger-safe IP2X neutral and protective conductor terminals; knockouts for metric cable entries on top and bottom; knockouts on the sides for connectors that can be used to connect two or more enclosures next to each other ; top part with 46 mm device opening; transparent door flush at front; can be set up as a right-hand or left-hand door; door stop can be easily changed on-site later on without having to remove the enclosure top; built-in sockets (CEE 7/4 (Schuko) outlets and IEC 60309 (CEE 17) industrial outlets), emergency stop buttons can be installed; enclosure top with sealable quick closures; door can be locked with LOCK-KIT-IKA accessory; door can be sealed; incl. blanking strip and inscription label.
