EATON

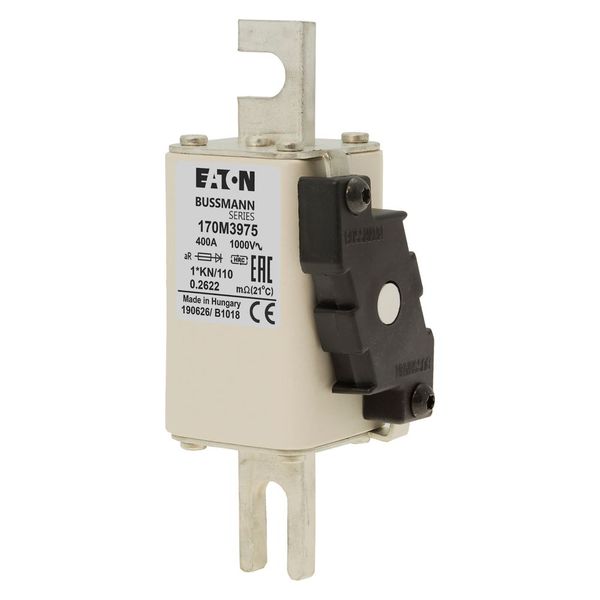

Fuse-link, high speed, 400 A, AC 1000 V, compact DIN 1, 43 x 61 x 138 mm, aR, DIN, IEC, single indicator

Tikai pasūtījums Minimālais pasūtījuma daudzums: 6
Cena (bez PVN):
125,17 €
Šī cena ir spēkā līdz 24.12.25
Starpsumma: 751,02 € MOQ: 6
EAN: 5027590450744
MPN: 170M3975
Iepakojums: 1
Kaste: 6
Paredzamais piegādes laiks mūsu noliktavā (aptuveni): 4-6 weeks

Technical Information

Preces stāvoklis Jauns
Ražotāja nosaukums Fuse-link, high speed, 400 A, AC 1000 V, compact DIN 1, 43 x 61 x 138 mm, aR, DIN, IEC, type K indicator
Zīmols EATON
Kategorijas HRC Fuses
Izcelsmes valsts HU
Harmonizētās sistēmas kods 8536 1090 00
Strāvas veids AC
Nominālā strāva 400 A
Izmantošanas kategorija aR (pievienotā pusvadītāju aizsardzība)
Pārrāvuma spēja 125 kA
Nominālais spriegums AC 1000 V
Drošinātāja konstrukcijas tips saskaņā ar IEC 60269 Citi

Iepakojuma informācija

Iepakojuma līmenis 1 5027590450744
Iepakojuma līmenis 2 5027590450744

Citi tehniskie dati

Krāsu kods Nav
Drošinātāja statusa indikatora veids Citi
Jaudas zudumi pie nominālās strāvas 65 W
Savienojumu attālums no centra līdz centram 106 mm
Montāžas caurumi M10

Apraksts

Fuse, Fuse-link, high speed, 400 A, AC 1000 V, compact DIN 1, 43 x 61 x 138 mm, aR, DIN, IEC, single indicator, square body with centre-bolted tags (slotted), indicator style K for microswitch, semiconductor protection, DIN 43653, IEC 60269-4, Breaking Capacity 150 kA
