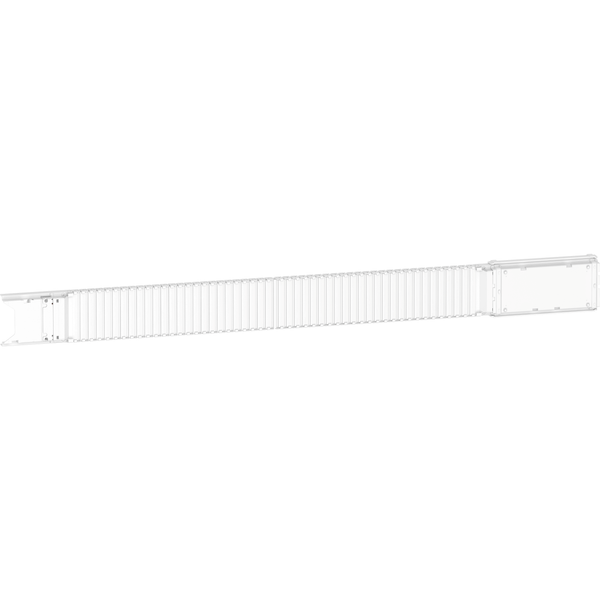

FLEXIBLE EDGEWISE LENGHT 100A
Tikai pasūtījums
Cena (bez PVN):
434,89 €
EAN: 3606480003011
MPN: KNA100DF410
Iepakojums: 1
Palete: 40
Paredzamais piegādes laiks mūsu noliktavā (aptuveni):
Pēc pieprasījuma
Technical Information
| Preces stāvoklis | Jauns |
| Ražotāja nosaukums | FLEXIBLE EDGEWISE LENGHT 100A |
| Zīmols | Schneider Electric |
| Kategorijas |
Busbar Systems and Accessories
|
| Izcelsmes valsts* | FR |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Nominālais spriegums pie maiņstrāvas 50 Hz | 500 V |
| Nominālā strāva pie AC 50 Hz | 100 A |
Iepakojuma informācija
| Iepakojuma līmenis 1 | 3606480003011 |
| Iepakojuma līmenis 2 | 3606480003011 |
Citi tehniskie dati
| Krāsa | Balts |
| Platums | 27.5 mm |
| Modelis | Viena |
| Augstums | 92 mm |
| Elastīgs | Yes |
| RAL numurs | 9001 |
| Vadu skaits (bez zemējuma) | 4 |
| Stabu skaits | 4 |
| Garums | 1000 mm |
| Aizsardzības pakāpe (IP) | IP55 |
| Atdalīšanas vienību skaits | 0 |
Lejupielādes
Apraksts
Canalis busbar trunking for KNA. It's applied to low power distribution. The operational voltage is from 230VAC to 500VAC 50/60Hz. The rated operational current is 100A at 35 ℃. It provides white RAL 9001 surface treatment. Mounting by screws on left or right side of trunking. The operational ambient air temperature is from 0 °C to 35 °C without derating. Designed with 1 circuit allowing. It provides 186 pT radiated magnetic field. It provides 2 dimensions direction change. It provides IP55 protection conforming to IEC 60529. IK08 conforms to EN/IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).
