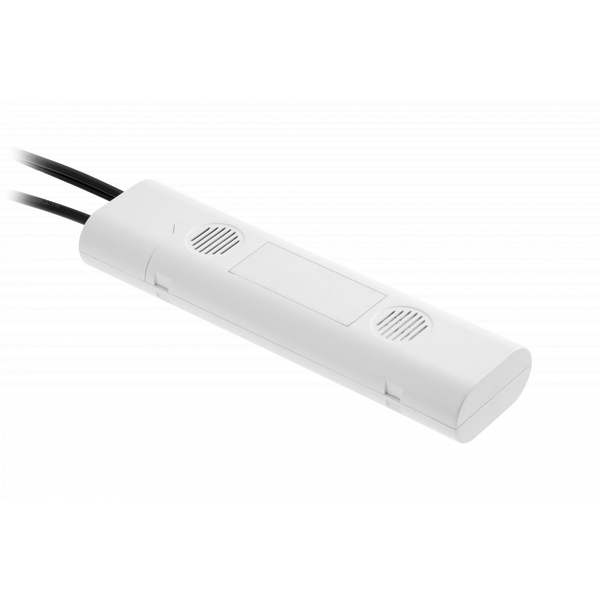

Emergency module for LED panels, AC220-240V, 50-60Hz, 24-48V, 3 hours, 4.8 V, 3000mAh, NI-CD battery, TEST button image 1
GTV Lighting

Emergency module for LED panels, AC220-240V, 50-60Hz, 24-48V, 3 hours, 4.8 V, 3000mAh, NI-CD battery, TEST button

Tikai pasūtījums
Cena (bez PVN):
33,08 €
Šī cena ir spēkā līdz 31.12.25
EAN: 5902801285400
MPN: OA-MALEDPAN-00
Iepakojums: 1
Kaste: 20
Palete: 1120
Paredzamais piegādes laiks mūsu noliktavā (aptuveni): 2-4 weeks

Technical Information

Preces stāvoklis Jauns
Ražotāja nosaukums Emergency module for LED panels, AC220-240V, 50-60Hz, 24-48V, 3 hours, 4.8 V, 3000mAh, NI-CD battery, TEST button
Zīmols GTV Lighting
Kategorijas Rozetes
Krāsa Balts

Iepakojuma informācija

Iepakojuma līmenis 1 5902801285400
Iepakojuma līmenis 2 5902801407550
Iepakojuma līmenis 3 2012801359070
Iepakojuma līmenis 4 2012801359209

Lejupielādes

Lietošanas instrukcija DOC CE deklarācija (CE atbilstības deklarācija)

Apraksts

The module is ideal for places that require continuous lighting, such as hospitals, warehouses, offices, and other commercial and residential spaces where safety and continuity of light are a priority.

Operating modes:

  1. 'Bright' Mode: Provides continuous illumination that functions both at normal power and when it is lost.
  2. 'Dark' Mode: The panel only lights up in the event of a power outage, which is ideal for occasional use.
  3. Switchable Mode: The lighting of the panel can be controlled by an external switch, allowing for flexible lighting management.

Installation and Operation:

  • LED indicator: Indicates the correct charging process for easy monitoring of the module's status.
  • First Time Charge: A 48-hour initial charge is required to ensure maximum battery efficiency and longevity.
  • Recharging and Testing: After the first charge, it is recommended to perform a full discharge test and then recharge for a minimum of 24 hours, which is crucial to maintain the health of the battery.
  • Maximum Power: The module works with LED panels up to 45W.
  • Battery Type: Equipped with a 4.8V Ni-Cd battery with a capacity of 3000mAh, which allows up to 3 hours of continuous lighting in the event of a power failure.
  • Illumination Hold Time: Guarantees lighting hold for 3 hours, which is crucial in critical applications.
