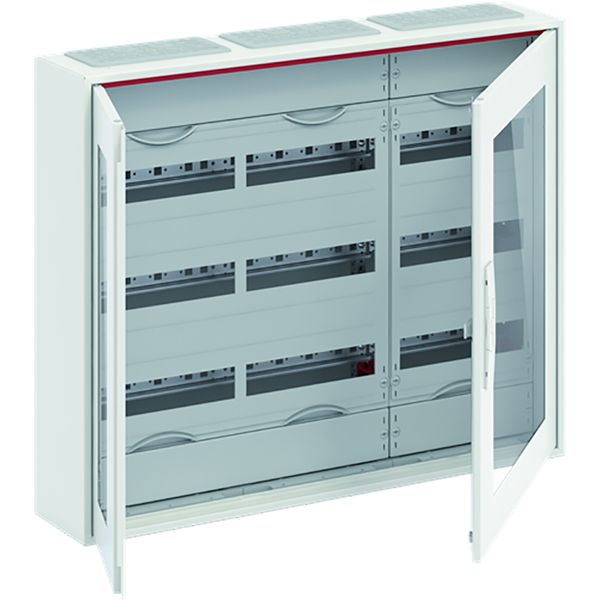

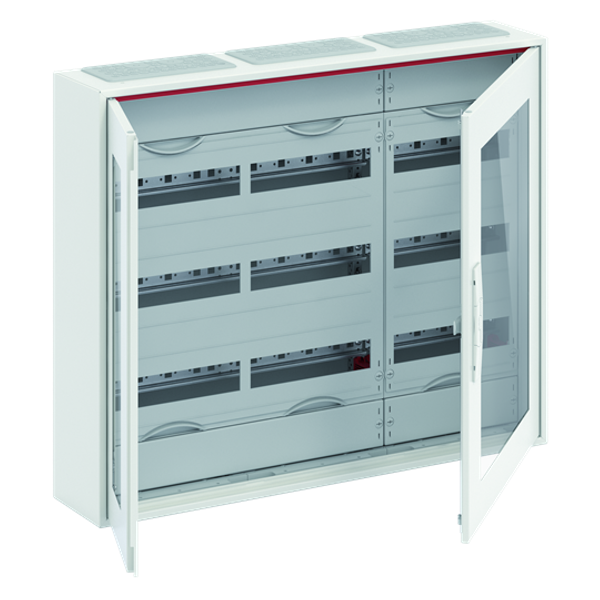

CA34RT ComfortLine Compact distribution board, Surface mounting, 108 SU, Isolated (Class II), IP44, Field Width: 3, Rows: 3, 650 mm x 800 mm x 160 mm image 1
CA34RT ComfortLine Compact distribution board, Surface mounting, 108 SU, Isolated (Class II), IP44, Field Width: 3, Rows: 3, 650 mm x 800 mm x 160 mm image 2
MD01 image 3
CA34RT ComfortLine Compact distribution board, Surface mounting, 108 SU, Isolated (Class II), IP44, Field Width: 3, Rows: 3, 650 mm x 800 mm x 160 mm image 4
CA34RT ComfortLine Compact distribution board, Surface mounting, 108 SU, Isolated (Class II), IP44, Field Width: 3, Rows: 3, 650 mm x 800 mm x 160 mm image 5
CA34RT ComfortLine Compact distribution board, Surface mounting, 108 SU, Isolated (Class II), IP44, Field Width: 3, Rows: 3, 650 mm x 800 mm x 160 mm image 6
CA34RT ComfortLine Compact distribution board, Surface mounting, 108 SU, Isolated (Class II), IP44, Field Width: 3, Rows: 3, 650 mm x 800 mm x 160 mm image 7
CA34RT ComfortLine Compact distribution board, Surface mounting, 108 SU, Isolated (Class II), IP44, Field Width: 3, Rows: 3, 650 mm x 800 mm x 160 mm thumbnail 1
CA34RT ComfortLine Compact distribution board, Surface mounting, 108 SU, Isolated (Class II), IP44, Field Width: 3, Rows: 3, 650 mm x 800 mm x 160 mm thumbnail 2
MD01 thumbnail 3
CA34RT ComfortLine Compact distribution board, Surface mounting, 108 SU, Isolated (Class II), IP44, Field Width: 3, Rows: 3, 650 mm x 800 mm x 160 mm thumbnail 4
CA34RT ComfortLine Compact distribution board, Surface mounting, 108 SU, Isolated (Class II), IP44, Field Width: 3, Rows: 3, 650 mm x 800 mm x 160 mm thumbnail 5
CA34RT ComfortLine Compact distribution board, Surface mounting, 108 SU, Isolated (Class II), IP44, Field Width: 3, Rows: 3, 650 mm x 800 mm x 160 mm thumbnail 6
CA34RT ComfortLine Compact distribution board, Surface mounting, 108 SU, Isolated (Class II), IP44, Field Width: 3, Rows: 3, 650 mm x 800 mm x 160 mm thumbnail 7
ABB

CA28RT Comp.DB 2PW 7R trans.door

Ir noliktavā: Nē Piegādātāja krājumi: Nē Minimālais pasūtījuma daudzums: 1
Cena (bez PVN):
1 497,67 € par gab.
Šī cena ir spēkā līdz 31.12.30
EAN: 4011617522577
MPN: 2CPX052257R9999
Iepakojums: 1
Palete: 10
Paredzamais piegādes laiks mūsu noliktavā (aptuveni): Pēc pieprasījuma

Technical Information

Preces stāvoklis Jauns
Ražotāja nosaukums CA34RT ComfortLine Compact distribution board, Surface mounting, 108 SU, Isolated (Class II), IP44, Field Width: 3, Rows: 3, 650 mm x 800 mm x 160 mm
Zīmols ABB
Kategorijas Small Distribution Boards
Harmonizētās sistēmas kods 8538 1000 00
Montāžas metode Virsmas montāža (apmetums)
Mājokļa materiāls Tērauds
Aizsardzības pakāpe (IP) IP44
Vāka modelis Slēgts
Signāls garāmejošajām durvīm No

Iepakojuma informācija

Iepakojuma līmenis 1 4011617522577
Iepakojuma līmenis 2 4011617522577

Citi tehniskie dati

Krāsa Balts
Platums 800 mm
Augstums 650 mm
Dziļums 160 mm
RAL numurs 9016
Ar montāžas plāksni No
Iebūvēts dziļums 135 mm
Rindu skaits 3
Iebūvētais augstums 0 mm
Pārsega veids Durvis
Iebūvētais platums 0 mm
EMC versija No
Iespējama pagarināšana Yes
Iekšējais dziļums 152 mm
DIN-sliede Yes
Platums moduļu atstarpju skaitā 36
Slēgšanas veids Citi
Caurspīdīgs vāks/durvis Yes
Ar slēdzeni Yes
Zemējuma spaiļu bloks Yes
Neitrāls spaiļu bloks Yes

Lejupielādes

Citi RoHS deklarācija REACH links DOC CE deklarācija (CE atbilstības deklarācija) Produkta datu lapa

Apraksts

Compact distribution board, partly assembled cabinet, for the internal use, with Door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP44, applicable standards: EN 61439-1, EN 61439-3, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, Powder-coated, in RAL 9016, enclosure out of sheet steel, transparent door, door out of sheet steel, in RAL 9016, with Standard closure, door opening angle 120 degree, door hinge right and left, cable entry on top via membrane flange mounted, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 650 x 800 x 160, Grid unit 4 GU, panel width 3, Space units 108, Row distance in mm: 150, covers out of Plastic, 90 degree press and turn closure, RAL 7035, with N/PE Quick-terminal, cable fastening rail integrated, Assembled with distribution module, device support removable
