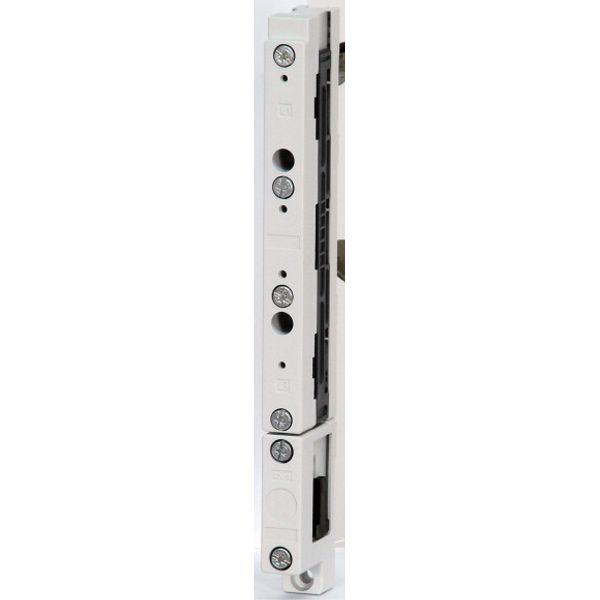

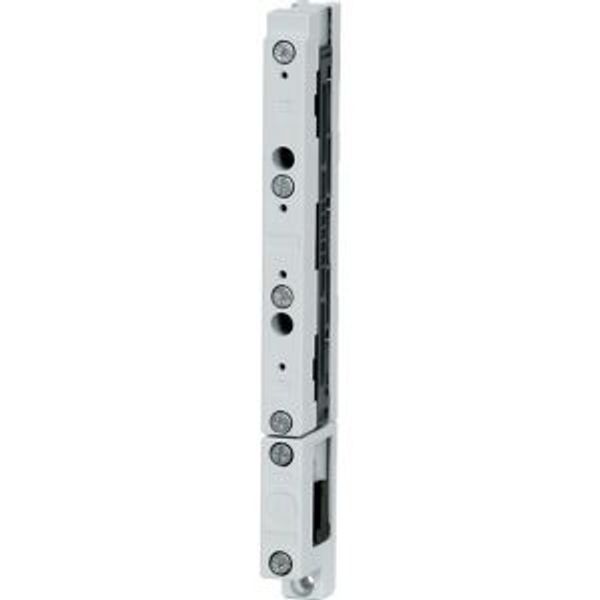

Busbar support 4p, for flat busbars
Ir noliktavā: Nē
Piegādātāja krājumi: Nē
Minimālais pasūtījuma daudzums: 10
Šī cena ir spēkā līdz 24.12.25
Starpsumma: 185,20 €
MOQ: 10
Paredzamais piegādes laiks mūsu noliktavā (aptuveni):
4-6 weeks
Technical Information
Iepakojuma informācija
Iepakojuma līmenis 1 |
4015081351619 |
Iepakojuma līmenis 2 |
9008790231025 |
Citi tehniskie dati
Stabu skaits |
4 |
Kopnes attālums |
60 mm |
Apraksts
IEC busbar support, 60 mm system, rated operational current Ie=630, poles=4, can be used for 12x5/10, 15x5/10, 20x5/10, 25x5/10, 30x5/10, with slider to adapt to the respective busbar size, with screw block inside, temperature resistant to 120 °C, track resistance CTI 200, self-extinguishing to UL 94, RAL 7035, thermoplastic, silicon free, chlorine free, halogen free, distance between busbar supports corresponding to the short-circuit strength diagram
