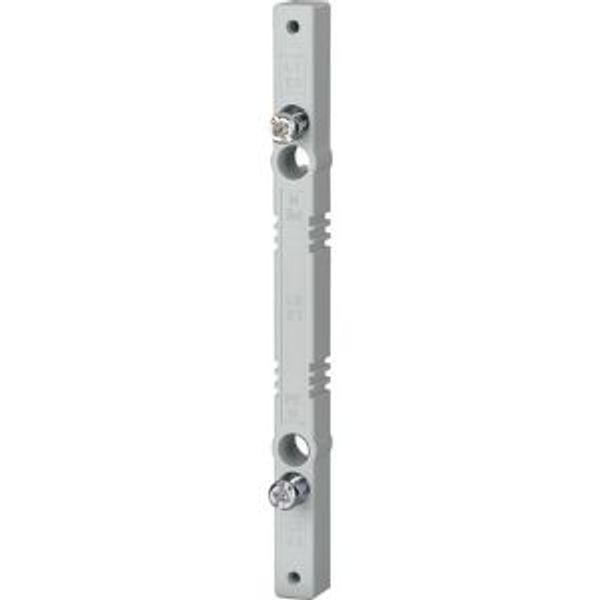

Busbar support 3p, for flat busbars image 1

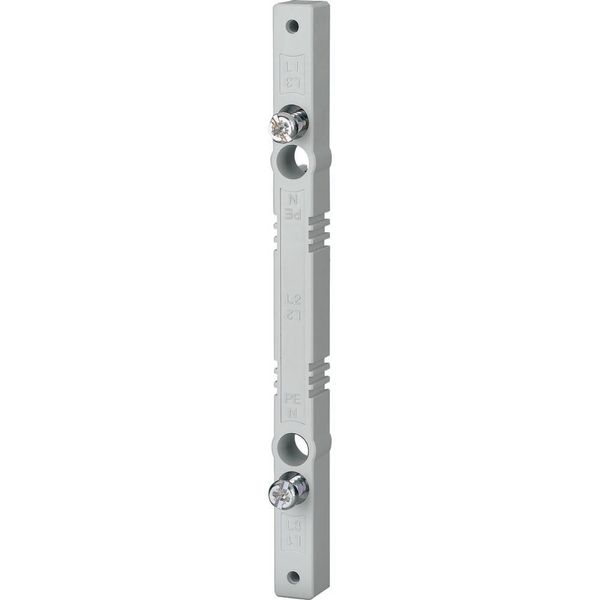

Busbar support 3p, for flat busbars image 2

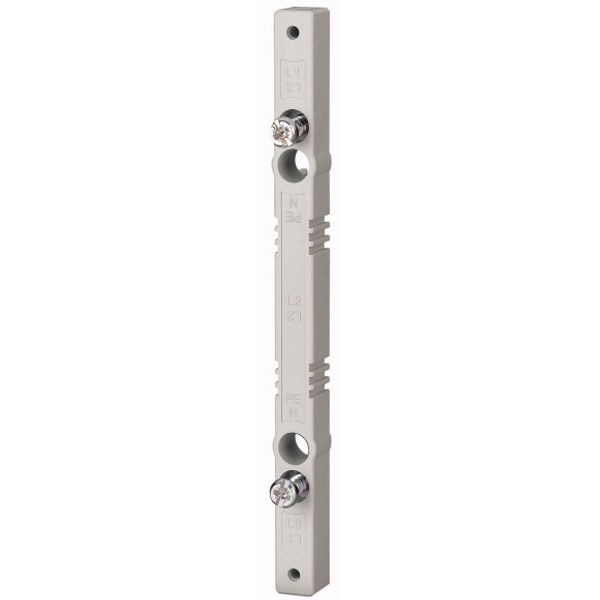

Busbar support 3p, for flat busbars image 3
Busbar support 3p, for flat busbars image 4
Busbar support 3p, for flat busbars thumbnail 1
Busbar support 3p, for flat busbars thumbnail 2
Busbar support 3p, for flat busbars thumbnail 3
Busbar support 3p, for flat busbars thumbnail 4
EATON

Busbar support 3p, for flat busbars

Tikai pasūtījums
Cena (bez PVN):
13,21 €
Šī cena ir spēkā līdz 24.12.26
EAN: 4015081351503
MPN: 138370
Iepakojums: 1
Kaste: 10
Paredzamais piegādes laiks mūsu noliktavā (aptuveni): 4-6 weeks

Technical Information

Preces stāvoklis Jauns
Ražotāja nosaukums Busbar support 3p, for flat busbars
Zīmols EATON
Kategorijas Busbar Systems and Accessories
Izcelsmes valsts* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonizētās sistēmas kods 8536 9010 00
Maks. nominālā strāva 360 A

Iepakojuma informācija

Iepakojuma līmenis 1 4015081351503
Iepakojuma līmenis 2 9008790230936

Citi tehniskie dati

Stabu skaits 3
Kopnes attālums 60 mm

Apraksts

Compact busbar support, 60 mm system, rated operational current Ie=360A, poles=3, can be used for 12x5/10, with removable contact element for adapting to the busbar size, with screw block inside and integrated end shroud, temperature resistant to 120 °C, track resistance CTI 200, self-extinguishing to UL 94, RAL 7035, thermoplastic, silicon free, chlorine free, halogen free, distance between busbar supports corresponding to short-circuit strength diagram
