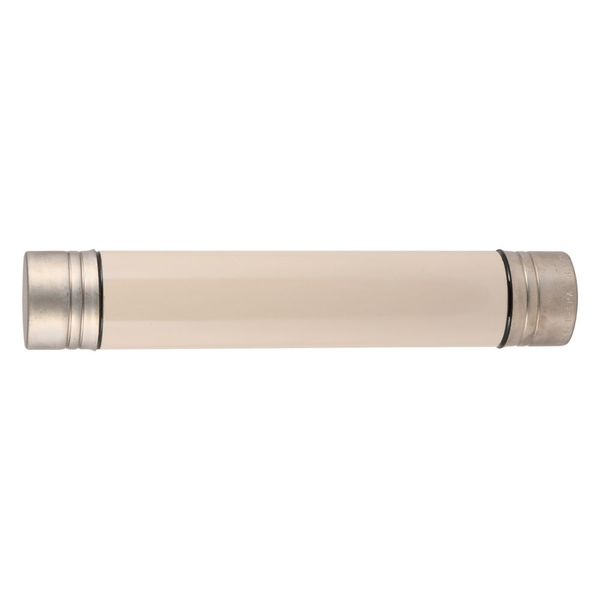

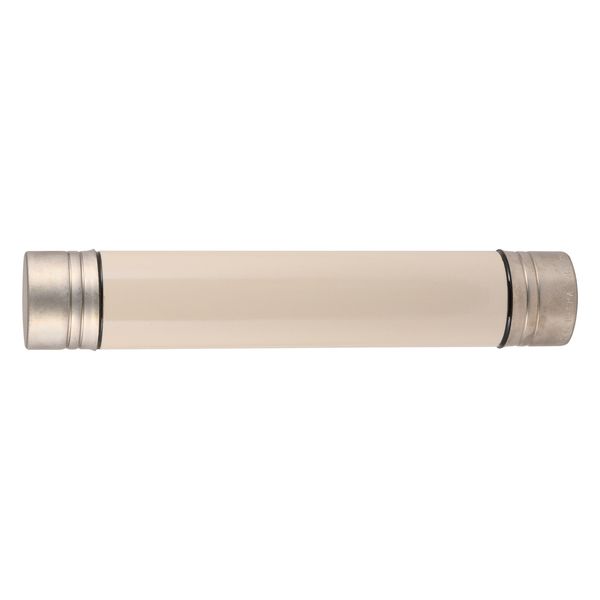

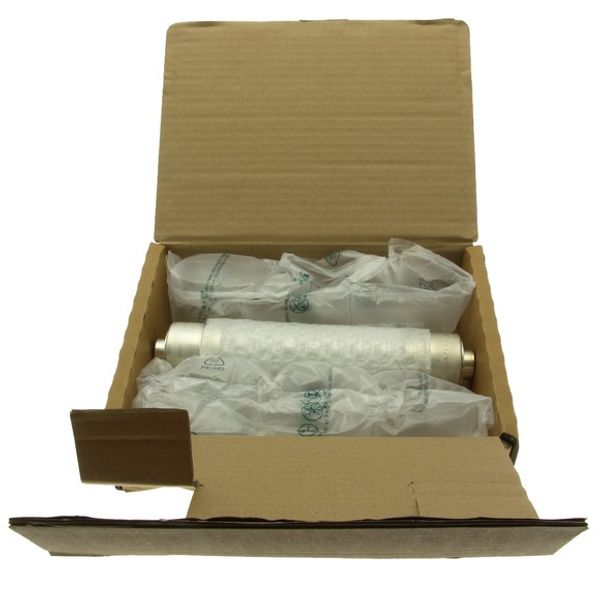

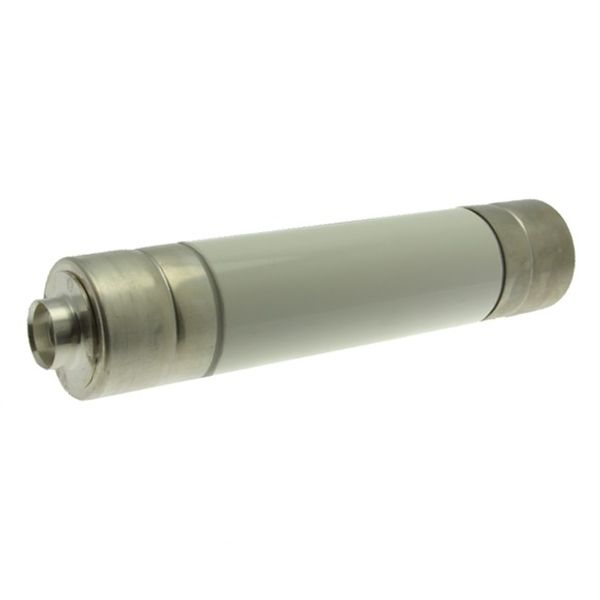

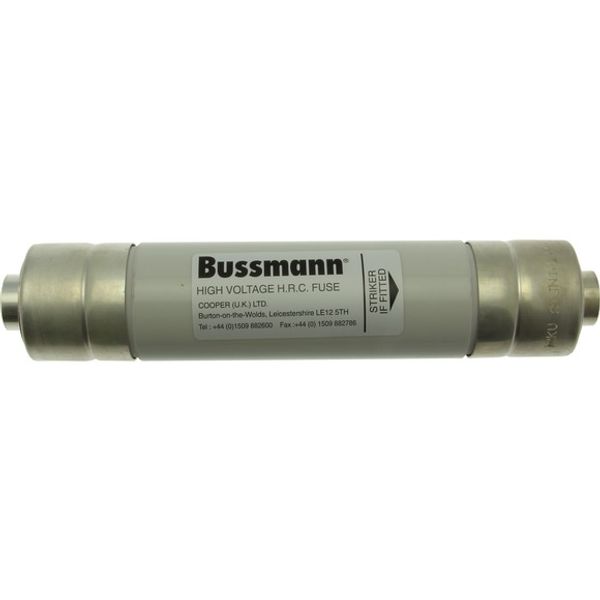

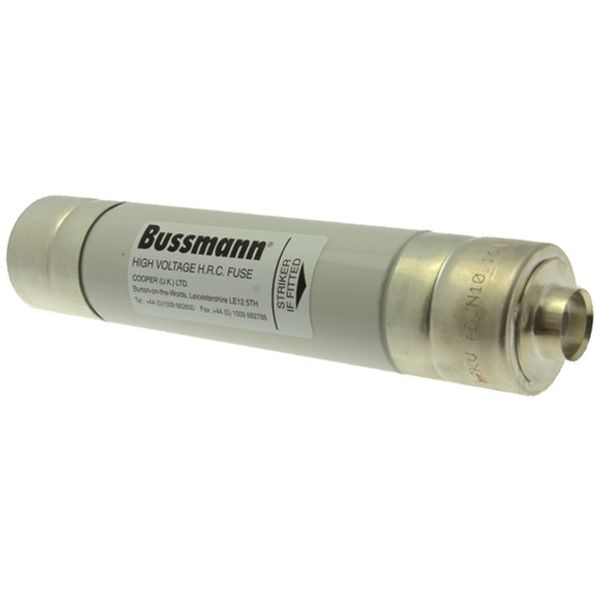

Air fuse-link, medium voltage, 16 A, AC 12 kV, 51 x 254 mm, back-up, BS image 1
Air fuse-link, medium voltage, 16 A, AC 12 kV, 51 x 254 mm, back-up, BS image 2
Air fuse-link, medium voltage, 16 A, AC 12 kV, 51 x 254 mm, back-up, BS image 3
Air fuse-link, medium voltage, 16 A, AC 12 kV, 51 x 254 mm, back-up, BS image 4
Air fuse-link, medium voltage, 16 A, AC 12 kV, 51 x 254 mm, back-up, BS image 5
Air fuse-link, medium voltage, 16 A, AC 12 kV, 51 x 254 mm, back-up, BS image 6
Air fuse-link, medium voltage, 16 A, AC 12 kV, 51 x 254 mm, back-up, BS image 7
Air fuse-link, medium voltage, 16 A, AC 12 kV, 51 x 254 mm, back-up, BS image 8
Air fuse-link, medium voltage, 16 A, AC 12 kV, 51 x 254 mm, back-up, BS image 9
Air fuse-link, medium voltage, 16 A, AC 12 kV, 51 x 254 mm, back-up, BS thumbnail 1
Air fuse-link, medium voltage, 16 A, AC 12 kV, 51 x 254 mm, back-up, BS thumbnail 2
Air fuse-link, medium voltage, 16 A, AC 12 kV, 51 x 254 mm, back-up, BS thumbnail 3
Air fuse-link, medium voltage, 16 A, AC 12 kV, 51 x 254 mm, back-up, BS thumbnail 4
Air fuse-link, medium voltage, 16 A, AC 12 kV, 51 x 254 mm, back-up, BS thumbnail 5
Air fuse-link, medium voltage, 16 A, AC 12 kV, 51 x 254 mm, back-up, BS thumbnail 6
Air fuse-link, medium voltage, 16 A, AC 12 kV, 51 x 254 mm, back-up, BS thumbnail 7
Air fuse-link, medium voltage, 16 A, AC 12 kV, 51 x 254 mm, back-up, BS thumbnail 8
Air fuse-link, medium voltage, 16 A, AC 12 kV, 51 x 254 mm, back-up, BS thumbnail 9
EATON

Air fuse-link, medium voltage, 16 A, AC 12 kV, 51 x 254 mm, back-up, BS

Tikai pasūtījums Minimālais pasūtījuma daudzums: 3 Nav pieejams
Paredzamais piegādes laiks mūsu noliktavā (aptuveni): 1-4 weeks

Technical Information

Preces stāvoklis Jauns
Ražotāja nosaukums Air fuse-link, medium voltage, 16 A, AC 12 kV, 51 x 254 mm, back-up, BS
Zīmols EATON
Izcelsmes valsts* HU
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonizētās sistēmas kods 8535 1000 00
Pieteikums Transformatora primārās puses aizsardzība
Sprieguma veids AC
Nominālā strāva 16 A
Nominālais spriegums 12 kV
Nominālā frekvence 50 Hz
Izmantošanas kategorija Citi
Pārrāvuma spēja 12 kA

Iepakojuma informācija

Iepakojuma līmenis 1 5027590430449
Iepakojuma līmenis 2 5027590027601

Citi tehniskie dati

Diametrs 51 mm
Atbrīvošanas raksturlielums Citi
Garums 232 mm
Uzstādīšanas tehnika Gaisa
Ar uzbrucēju No
Standarta Britu standarts
Veiktspējas kategorija saskaņā ar IEC 60282-1 Dublējums

Apraksts

Fuse, Air fuse-link, medium voltage, 16 A, AC 12 kV, 51 x 254 mm, back-up, BS, cylindrical, protection of primary side transformers, used in fuse switch combination units, fuse bases and fuse switches, BS2692-1, Breaking Capacity 12 kA
