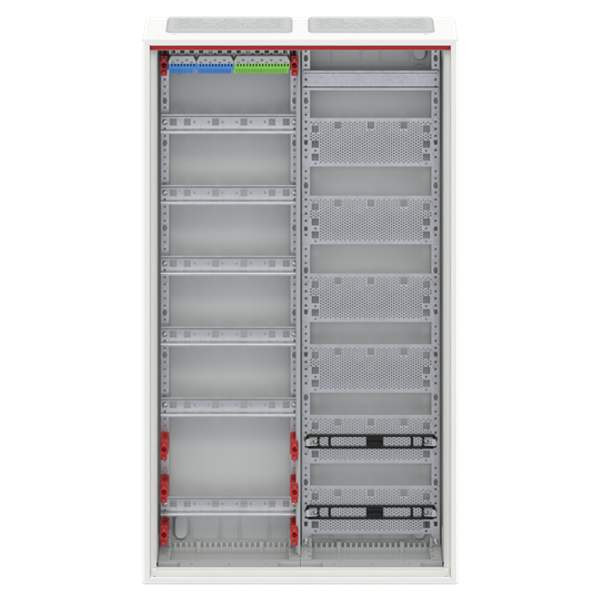

CA26VML ComfortLine Compact distribution board, Surface mounting, 72 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 6, 950 mm x 550 mm x 160 mm image 1

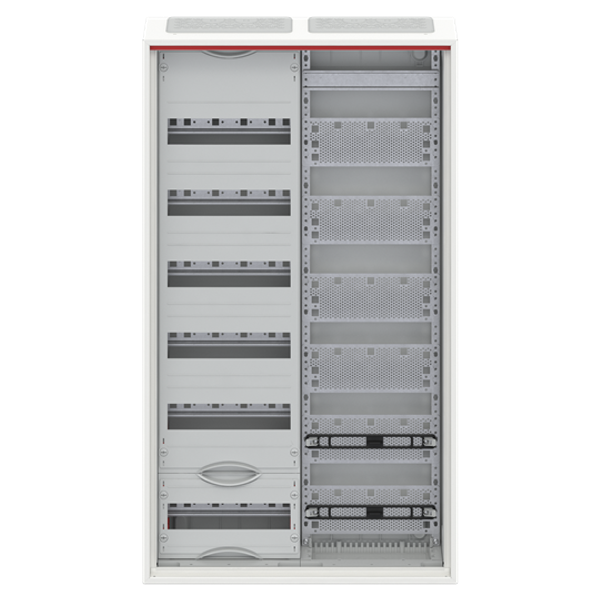

CA26VML ComfortLine Compact distribution board, Surface mounting, 72 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 6, 950 mm x 550 mm x 160 mm image 2
MD99 image 3
MD99 image 4

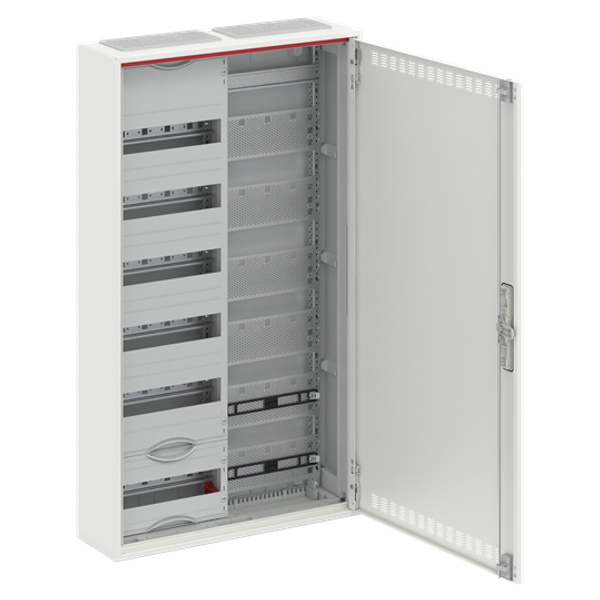

CA26VML ComfortLine Compact distribution board, Surface mounting, 72 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 6, 950 mm x 550 mm x 160 mm image 5
MD99 image 6
MD99 image 7
MD01 image 8
MD99 image 9
MD01 image 10
MD99 image 11
MD99 image 12
MD99 image 13
MD99 image 14
MD01 image 15
MD01 image 16
CA26VML ComfortLine Compact distribution board, Surface mounting, 72 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 6, 950 mm x 550 mm x 160 mm image 17
CA26VML ComfortLine Compact distribution board, Surface mounting, 72 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 6, 950 mm x 550 mm x 160 mm image 18
CA26VML ComfortLine Compact distribution board, Surface mounting, 72 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 6, 950 mm x 550 mm x 160 mm image 19
CA26VML ComfortLine Compact distribution board, Surface mounting, 72 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 6, 950 mm x 550 mm x 160 mm thumbnail 1
CA26VML ComfortLine Compact distribution board, Surface mounting, 72 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 6, 950 mm x 550 mm x 160 mm thumbnail 2
MD99 thumbnail 3
MD99 thumbnail 4
CA26VML ComfortLine Compact distribution board, Surface mounting, 72 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 6, 950 mm x 550 mm x 160 mm thumbnail 5
MD99 thumbnail 6
MD99 thumbnail 7
MD01 thumbnail 8
MD99 thumbnail 9
MD01 thumbnail 10
MD99 thumbnail 11
MD99 thumbnail 12
MD99 thumbnail 13
MD99 thumbnail 14
MD01 thumbnail 15
MD01 thumbnail 16
CA26VML ComfortLine Compact distribution board, Surface mounting, 72 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 6, 950 mm x 550 mm x 160 mm thumbnail 17
CA26VML ComfortLine Compact distribution board, Surface mounting, 72 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 6, 950 mm x 550 mm x 160 mm thumbnail 18
CA26VML ComfortLine Compact distribution board, Surface mounting, 72 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 6, 950 mm x 550 mm x 160 mm thumbnail 19
ABB

CA25VML Comp.DB 2PW 5R media vent.

Ir noliktavā: Nē Piegādātāja krājumi: Nē Minimālais pasūtījuma daudzums: 1
Cena (bez PVN):
519,85 € par gab.
Šī cena ir spēkā līdz 31.12.30
EAN: 4011617522133
MPN: 2CPX052213R9999
Iepakojums: 1
Palete: 12
Paredzamais piegādes laiks mūsu noliktavā (aptuveni): Pēc pieprasījuma

Technical Information

Preces stāvoklis Jauns
Ražotāja nosaukums CA26VML ComfortLine Compact distribution board, Surface mounting, 72 SU, Isolated (Class II), IP30, Field Width: 2, Rows: 6, 950 mm x 550 mm x 160 mm
Zīmols ABB
Kategorijas Small Distribution Boards
Harmonizētās sistēmas kods 8538 1000 00
Montāžas metode Virsmas montāža (apmetums)
Mājokļa materiāls Tērauds
Aizsardzības pakāpe (IP) IP30
Vāka modelis Slēgts
Signāls garāmejošajām durvīm FALSE

Iepakojuma informācija

Iepakojuma līmenis 1 4011617522133
Iepakojuma līmenis 2 4011617522133

Citi tehniskie dati

Krāsa Balts
Platums 550 mm
Augstums 950 mm
Dziļums 160 mm
RAL numurs 9016
Ar montāžas plāksni TRUE
Iebūvēts dziļums 0 mm
Rindu skaits 6
Iebūvētais augstums 0 mm
Pārsega veids Durvis
Iebūvētais platums 0 mm
EMC versija FALSE
Iespējama pagarināšana TRUE
Iekšējais dziļums 152 mm
DIN-sliede TRUE
Platums moduļu atstarpju skaitā 24
Slēgšanas veids Citi
Caurspīdīgs vāks/durvis FALSE
Ar slēdzeni TRUE
Zemējuma spaiļu bloks TRUE
Neitrāls spaiļu bloks TRUE

Lejupielādes

Citi RoHS deklarācija REACH links DOC CE deklarācija (CE atbilstības deklarācija) Produkta datu lapa

Apraksts

Compact distribution board, partly assembled cabinet, for the internal use, with Door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP30, applicable standards: EN 61439-1, EN 61439-3, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, Powder-coated, in RAL 9016, enclosure out of sheet steel, ventilated metal door, door out of sheet steel, in RAL 9016, with Standard closure, door opening angle 120 degree, door hinge right or left, cable entry on top via membrane flange mounted, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 950 x 550 x 160, Grid unit 6 GU, panel width 2, Space units 72, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, RAL 7035, with N/PE Quick-terminal, cable fastening rail integrated, Assembled with distribution module + multimedia module, device support removable
