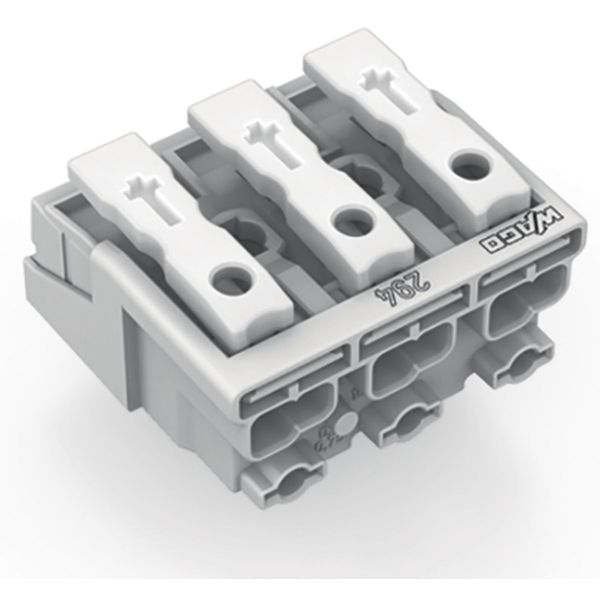

Lighting connector push-button, external without ground contact white

Name: Lighting connector push-button, external without ground contact white
Brand: WAGO
Price: 0.580 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 500

Price (excl. VAT):

0,58 €

This price is valid until 24.12.25

Subtotal: 290,00 € MOQ: 500

EAN: 4050821097600

MPN: 294-4003

Package: 1

Box: 500

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Lighting connector push-button, external without ground contact white
Brand	WAGO
Categories	Terminal Block Accessories
Country of origin	CH
Harmonized System Code	8536 9010 00
Rated voltage	500 V
Rated current In	24 A
Explosion-tested version 'Ex e'	No

Packing level 1	4050821097600
Packing level 2	4050821097600

Mounting method	Other
Colour	White
Width	30 mm
Halogen free	Yes
Height	27.3 mm
Depth	17 mm
Number of poles	3
Operating temperature	125 °C
Number of clamp positions per pole	2
Inflammability class of insulation material according to with UL94	V2
Closing plate required	No
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Push-in clamp connection
Transparent	No
Connectable conductor cross section solid-core	0.5-2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.5-1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5-2.5 mm²
Connectable conductor cross section multi-wired	0.5-2.5 mm²
Material insulation body	Other
