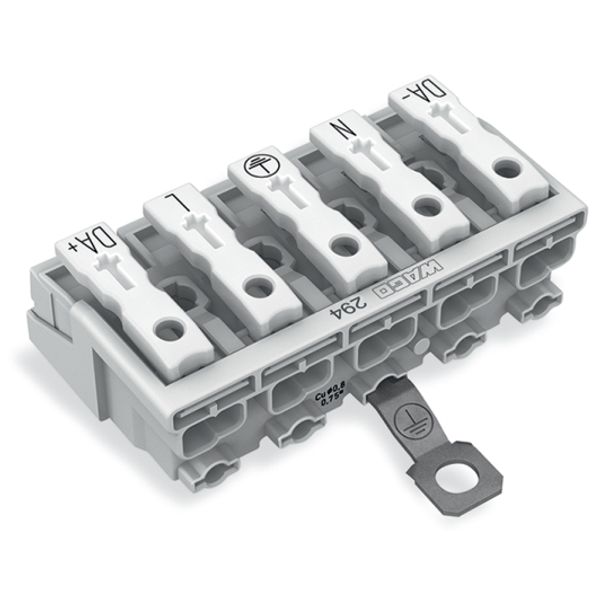

Lighting connector push-button, external with screw-type ground contac

Name: Lighting connector push-button, external with screw-type ground contac
Brand: WAGO
Price: 1.070 EUR
Availability: PreOrder

Order only Minimal order quantity: 250

Price (excl. VAT):

1,07 €

This price is valid until 24.12.25

Subtotal: 267,50 € MOQ: 250

EAN: 4050821098133

MPN: 294-4475

Package: 1

Box: 250

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Lighting connector push-button, external with screw-type ground contac
Brand	WAGO
Categories	Terminal Block Accessories
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9010 00
Rated voltage	500 V
Rated current In	24 A
Explosion-tested version 'Ex e'	No

Packing level 1	4050821098133
Packing level 2	4050821098133

Mounting method	Other
Colour	White
Width	50 mm
Halogen free	Yes
Height	27.3 mm
Depth	17 mm
Number of poles	5
Operating temperature	125 °C
Number of clamp positions per pole	2
Inflammability class of insulation material according to with UL94	V2
Closing plate required	No
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Push-in clamp connection
Transparent	No
Connectable conductor cross section solid-core	0.5-2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.5-1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5-2.5 mm²
Connectable conductor cross section multi-wired	0.5-2.5 mm²
Material insulation body	Other
