GES9-3B U 7011 Service outlet for universal mounting 264x264x67

Name: GES9-3B U 7011 Service outlet for universal mounting 264x264x67
Brand: OBO Bettermann
Price: 47.200 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 2

Price (excl. VAT):

47,20 € per pcs

This price is valid until 31.12.25

Subtotal: 94,40 € MOQ: 2

EAN: 4012196460496

MPN: 7405077

Package: 1

Box: 2

Pallet: 80

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	GES9-3B U 7011 Service outlet for universal mounting 264x264x67
Brand	OBO Bettermann
Categories	Installation Device Holders Cable Management
Country of origin	HU
Harmonized System Code	8538 1000 00
Number of device cups	3
Housing material	Plastic
Suitable for concrete installation	No
Material cover	Plastic
Suitable for sub-floor duct	Yes
Suitable for hollow floor	Yes
Suitable for double floor built-in	Yes
Cover model	Square
Suitable for indoor installation	No
Suitable for outdoor installation	No
With cable outlet in cover	Yes

Packing details

Packing level 1	4012196475681
Packing level 2	4012196475698
Packing level 3	4012197210090

Other Technical data

Colour	Grey
Outer diameter	0 mm
RAL-number	7011
Built-in diameter	0 mm
With opening carpeting	Yes
Protective frame carpeting	Yes

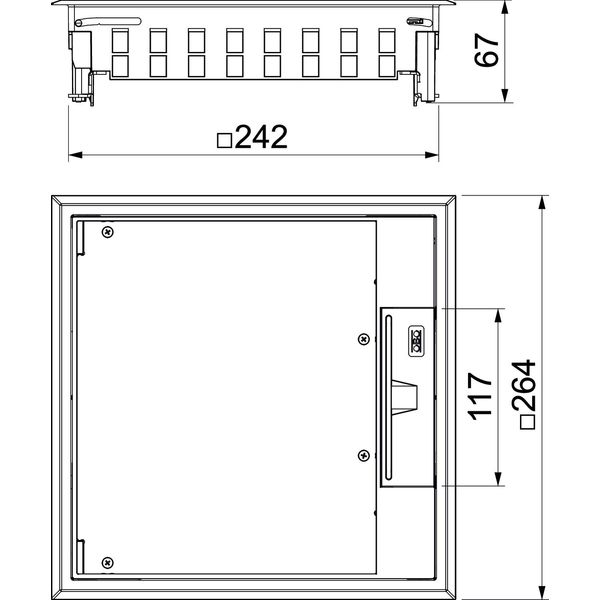

Width outside dimension	264 mm
Width built-in dimension	244 mm
Length external dimension	264 mm
Length built-in dimension	244 mm
Min. built-in depth	73 mm
Suitable for wet cleaning	No
Depth of flooring recess	10 mm
Suitable for floors in computer rooms	No

Downloads

Product data sheet

Description

Ierīču montāžas kārba ar rokturi ne vairāk kā 12 atsevišķām Modul 45 ierīcēm 3 universālajos balstos UT4, izmanto kanālu sistēmās un sistēmu grīdās iekštelpās. Vākā izveidots 5 mm izgriezums grīdas segumam, pēc vajadzības arī noregulējams uz 10 mm.
