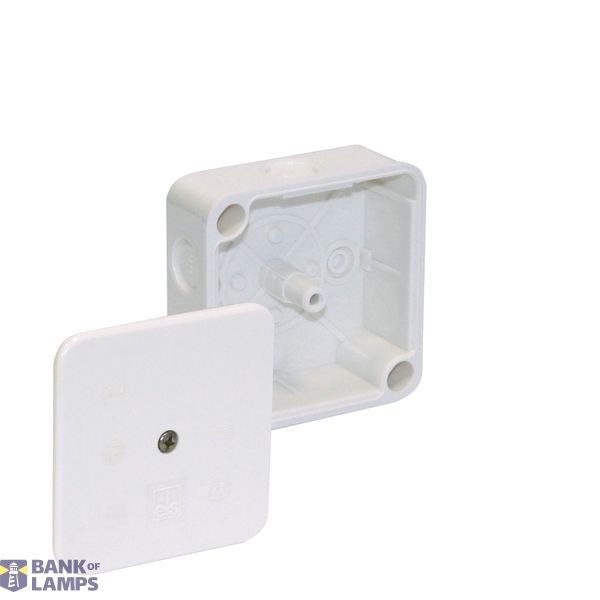

Junction Box WK 007-L/w

Name: Junction Box WK 007-L/w
Brand: Spelsberg
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Junction Box WK 007-L/w
Brand	Spelsberg
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
ETIM	EC002600
Halogen free	Yes
Equipped with	None
Rated insulation voltage Ui	400 V
Sealable	No
Max. conductor cross section	2.5 mm²
Weatherproof	Yes
Degree of protection (IP)	IP54
Inlet from the rear	No

Packing details

Packing level 1	4013902040087
Packing level 2	4013902040087, 4013902340514
Packing level 3	4013902040087, 4013902340521

Other Technical data

Mounting method	Wall-/ceiling mounting
Colour	White
Width	80 mm
Depth	38 mm
Shape	Rectangular
Surface protection	Untreated
Length	80 mm
Circuit integrity	None
Operating temperature	-25-40 °C
Material	Plastic
Number of inlets	7
Explosion-tested version	No
Cover attachment	Screwed
With screening	No
For Ex-zone gas	None
Tackable	No
Type of housing feed-through	Preembossing
For Ex-Zone dust	None
Cover model	Other
Castable	Yes
With casting compound	No
Transparent cover	No
Mounting in the soil	No
Mounting under water	No

Description

Junction box acc. to DIN EN 60670 (VDE 0606), Duroplastic, halogen-free, with IP54 attachment bushes, with blanking plug M16, seal range 6-10mm, White, without terminals
