Junction box, Type of protection IP68, max. 4², Impact strength IK09, Protection class II, Ui 450V AC, Ui 450V DC, VDE, Halogen free

Name: Junction box, Type of protection IP68, max. 4², Impact strength IK09, Protection class II, Ui 450V AC, Ui 450V DC, VDE, Halogen free
Brand: Spelsberg
Price: 61.910 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

61,91 €

This price is valid until 31.12.25

EAN: 4013902664580

MPN: 40446001

Package: 1

Pallet: 72

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Junction box, Type of protection IP68, max. 4², Impact strength IK09, Protection class II, Ui 450V AC, Ui 450V DC, VDE, Halogen free
Brand	Spelsberg
Categories	Surface Mounted Junction Boxes
Country of origin	DE
Harmonized System Code	8536 9095 00
Halogen free	Yes
Rated insulation voltage Ui	450 V
Sealable	Yes
Max. conductor cross section	4 mm²
Weatherproof	Yes
Degree of protection (IP)	IP68
Inlet from the rear	Yes

Packing details

Packing level 1	4013902664580, 4013902664580
Packing level 2	4013902664597

Other Technical data

Mounting method	Wall-/ceiling mounting
Colour	Grey
Width	102 mm
Depth	70 mm
Shape	Square
Surface protection	Untreated
Length	102 mm
Circuit integrity	None
Operating temperature	-35-80 °C
Material	Plastic
Number of inlets	8
Explosion-tested version	No
Cover attachment	Screwed
With screening	No
For Ex-zone gas	None
Tackable	No
Type of housing feed-through	Preembossing
For Ex-Zone dust	None
Cover model	None
Castable	Yes
With casting compound	Yes
Transparent cover	No
Degree of protection (NEMA)	Other
Mounting in the soil	No
Mounting under water	No

Downloads

Product data sheet

Videos

Watch On Youtube

Description

Junction box, protection class IP68, nominal cross-section 4mm², Ui=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22) & DIN VDE V 0606-22-100), knockouts, M16/M20/M25, (1 rear, 7 side), internal fixing points, with screwless terminals for encapsulation, for assembly in flooded areas and in the ground without traffic loads, for installation in industrial environments and unprotected outdoor areas, grey, In=32 A, with 5 floor-fixed, screwless 3-wire terminal blocks, Wago 221-413-4mm², clampable cross-sections per pole: 3 x 0.2 to 4mm² rigid Cu and 3 x 0.14 to 4mm² flexible Cu
Dimensions: 102 x 102 x 70mm

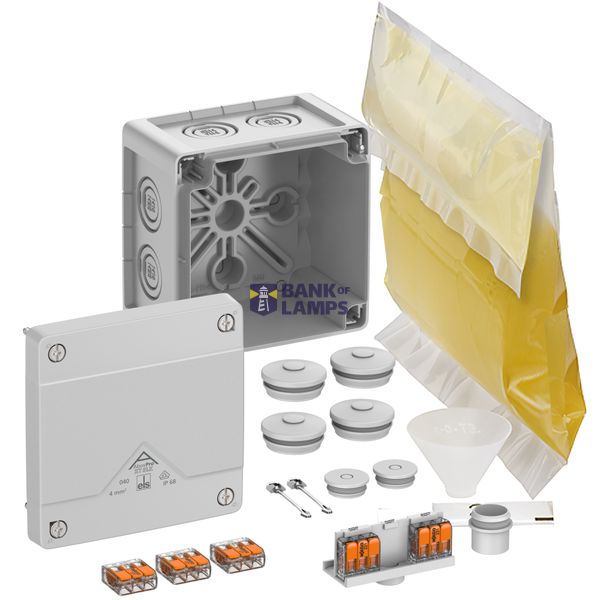

Accessories supplied: 4 double membrane seals IP66 M25 sealing range 9-17mm, 2 sealing plugs M25, 1 attachment bush M25, cover retainer, 1 cast resin bag GHB2 with filling funnel and disposable gloves
