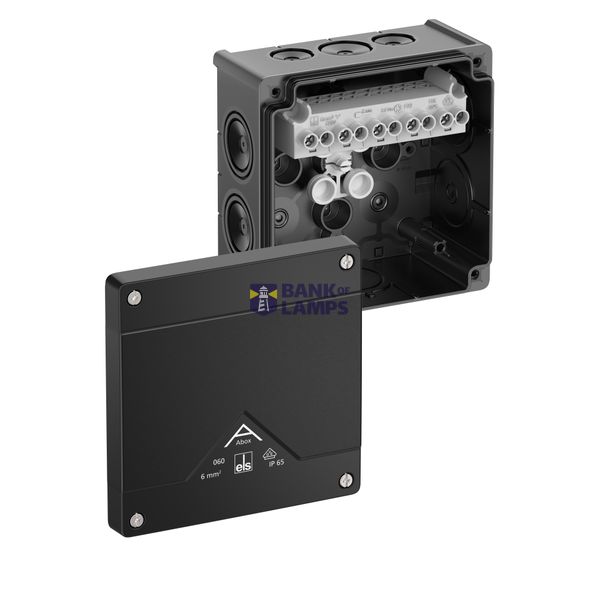

Junction box, Type of protection IP66, max. 6², Impact strength IK07, Protection class II, Ui 690V AC, Ui 690V DC, DLG, VDE, Halogen free

Name: Junction box, Type of protection IP66, max. 6², Impact strength IK07, Protection class II, Ui 690V AC, Ui 690V DC, DLG, VDE, Halogen free
Brand: Spelsberg
Price: 22.010 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

22,01 €

This price is valid until 31.12.26

EAN: 4013902661084

MPN: 80602001

Package: 1

Box: 20

Pallet: 540

Estimate delivery time to our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Junction box, Type of protection IP66, max. 6², Impact strength IK07, Protection class II, Ui 690V AC, Ui 690V DC, DLG, VDE, Halogen free
Brand	Spelsberg
Categories	Surface Mounted Junction Boxes
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9095 00
Halogen free	Yes
Rated insulation voltage Ui	690 V
Sealable	Yes
Max. conductor cross section	6 mm²
Weatherproof	Yes
Degree of protection (IP)	IP66
Inlet from the rear	Yes

Packing details

Packing level 1	4013902661084
Packing level 2	4013902661091
Packing level 3	4013902661107

Other Technical data

Mounting method	Wall-/ceiling mounting
Colour	Black
Width	127 mm
Depth	70 mm
Shape	Square
Surface protection	Untreated
Length	127 mm
Circuit integrity	None
Operating temperature	-25-55 °C
Material	Plastic
Number of inlets	10
Explosion-tested version	No
Cover attachment	Screwed
With screening	No
For Ex-zone gas	None
Tackable	No
Type of housing feed-through	Seal membrane
For Ex-Zone dust	None
Cover model	None
Castable	No
With casting compound	No
Transparent cover	No
Degree of protection (NEMA)	Other
Mounting in the soil	No
Mounting under water	No

Downloads

Product data sheet

Videos

Watch On Youtube

Description

Junction box, protection class IP66, nominal cross-section 6mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion membranes, M20/M25/M32, sealing range 4-28mm, (2 rear, 8 side), internal fixing points, for standard indoor and protected outdoor installations, black, Ui=690 V AC, In=41 A, with raised screw terminal block, 5-pole-6mm², clampable cross-sections per pole: 4 x 1.5mm², 4 x 2.5mm², 4 x 4mm², 4 x 6mm² rigid Cu/flexible with wire-end ferrule
Dimensions: 127 x 127 x 70mm
