Junction box, outdoor, grey, IP 66/67, 93x93x62, term.: 5-pole, 2,5 mm2, Cu (KF 0202 G)

Name: Junction box, outdoor, grey, IP 66/67, 93x93x62, term.: 5-pole, 2,5 mm2, Cu (KF 0202 G)
Brand: HENSEL
Price: 8.830 EUR
Availability: InStock

In stock Minimal order quantity: 200

Price (excl. VAT):

8,83 € per pcs

This price is valid until 31.12.25 or while stock lasts

Subtotal: 1 766,00 € MOQ: 200

EAN: 4012591121718

MPN: 62000043

Package: 1

Box: 5

Pallet: 880

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Junction box, outdoor, grey, IP 66/67, 93x93x62, term.: 5-pole, 2,5 mm2, Cu (KF 0202 G)
Brand	HENSEL
Categories	Surface Mounted Junction Boxes
Country of origin	DE
Harmonized System Code	8536 9010 00
Halogen free	Yes
Equipped with	Clamp
Rated insulation voltage Ui	690 V
Sealable	Yes
Max. conductor cross section	4 mm²
Weatherproof	Yes
Degree of protection (IP)	IP66/IP67
Inlet from the rear	No

Packing details

Packing level 1	4012591121718
Packing level 2	4012591121718
Packing level 3	4012591121718

Other Technical data

Mounting method	Wall-/ceiling mounting
Colour	Grey
Width	93 mm
Depth	62 mm
Shape	Square
Surface protection	Untreated
Length	93 mm
Circuit integrity	None
Operating temperature	-25-70 °C
Material	Plastic
Number of inlets	7
Explosion-tested version	No
Cover attachment	Screwed
With screening	No
For tube diameter	Other
For Ex-zone gas	None
Tackable	No
Type of housing feed-through	Preembossing
For Ex-Zone dust	None
Cover model	Other
Castable	No
With casting compound	No

Description

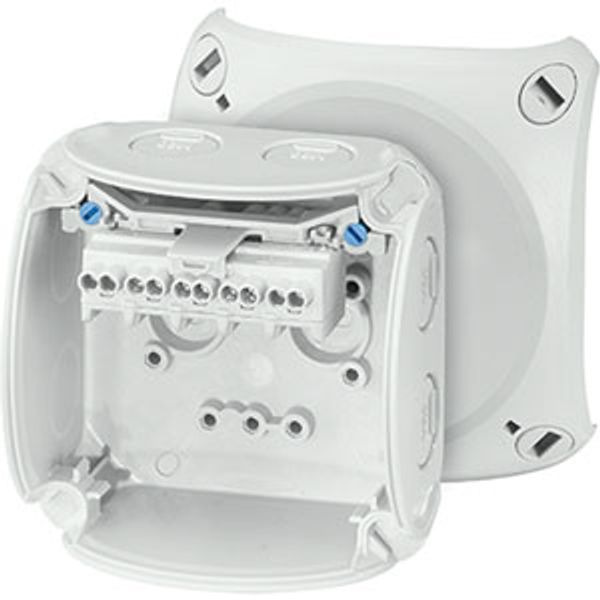

Cable junction box made of high-quality thermoplastic for the unprotected outdoor installation or surface mounted applications in buildings. Resistant against weather conditions such as UV exposure due to solar radiation, protected against rain water, temperature-resistant and shock-resistant. Cover fastening via quick fasteners. With external brackets for fastening. Salt water-proof for offshore applications. With approval for installation on ships. Terminal with 2 clamping units per pole up to 2.5 mm², 5-pole. Cable entry via metric knockouts. Cable glands in the accessories. With cover retaining strap.
