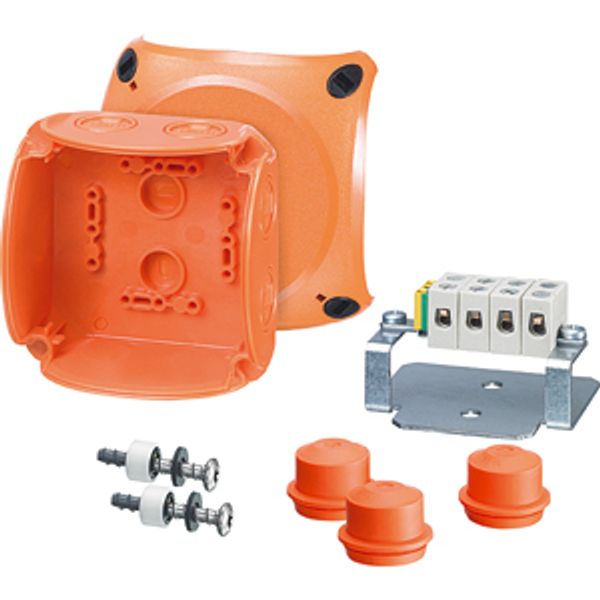

Junction box E90 with terminals, 5-pole up to 4 mm2, IP 65/66, made of policarbonate (FK 0404)

Name: Junction box E90 with terminals, 5-pole up to 4 mm2, IP 65/66, made of policarbonate (FK 0404)
Brand: HENSEL
Price: 65.450 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

65,45 € per pcs

This price is valid until 31.12.25

EAN: 4012591126034

MPN: 62000181

Package: 1

Pallet: 280

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Junction box E90 with terminals, 5-pole up to 4 mm2, IP 65/66, made of policarbonate (FK 0404)
Brand	HENSEL
Categories	Surface Mounted Junction Boxes
Country of origin	DE
Harmonized System Code	8536 9010 00
Halogen free	Yes
Equipped with	Clamp
Rated insulation voltage Ui	400 V
Sealable	Yes
Max. conductor cross section	4 mm²
Weatherproof	No
Degree of protection (IP)	IP66
Inlet from the rear	No

Packing details

Packing level 1	4012591126034, 4012591126034
Packing level 2	4012591126034

Other Technical data

Mounting method	Wall-/ceiling mounting
Colour	Orange
Width	104 mm
Depth	70 mm
Shape	Square
Surface protection	Other
Length	104 mm
Circuit integrity	E90
Operating temperature	-25-40 °C
Material	Plastic
Number of inlets	7
Explosion-tested version	No
Cover attachment	Screwed
With screening	No
For tube diameter	Other
For Ex-zone gas	None
Tackable	No
Type of housing feed-through	Preembossing
For Ex-Zone dust	None
Cover model	Other
Castable	No
With casting compound	No

Description

Cable junction box made of high-quality thermoplastic with intrinsic fire resistance in connection with function-retaining cables. Functional integrity classes E30 to E90. For surface mounted applications in buildings or the protected outdoor installation. With screw anchors as standard, highly temperature-resistant ceramic terminal for copper conductors, cable entry via metric knockouts in enclosure walls via enclosed grommets. Cover fastening with quick fasteners. With 5-pole terminal. As junction box up to 2.5 mm² or connection box up to 4 mm². Cable glands type AKMF in the accessories.
