Isolating transducer 1-channel IM33-14EX-CDRI
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
795,67 €
EAN: 4047101120905
MPN: 7560015
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Isolating transducer 1-channel IM33-14EX-CDRI |
| Brand | TURCK |
| Categories |
Limit Switches
|
| Country of origin | DE |
| Harmonized System Code | 8543 7090 00 |
| Rated operation frequency | 40 Hz |
| Rated supply voltage at AC | 20 V |
| Rated supply voltage at DC | 20 V |
Packing details
| Packing level 1 | 4047101120905, 4047101120905 |
Other Technical data
| Mounting method | Snap mounting support rail |

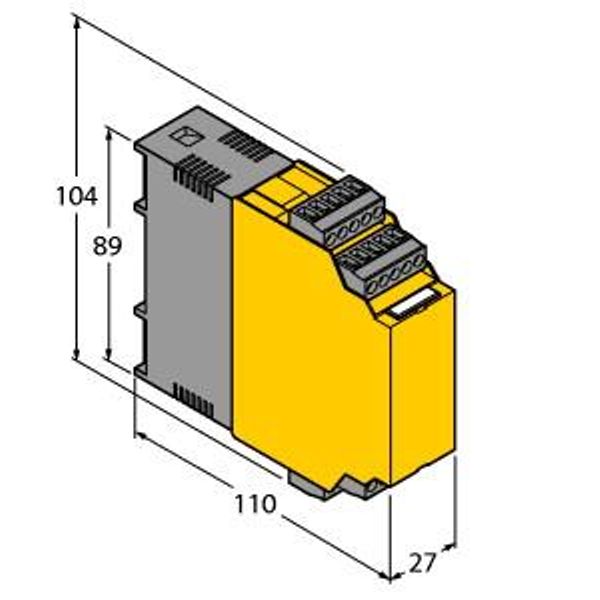

| Width | 27 mm |
| Height | 110 mm |
| Depth | 104 mm |
| Power consumption | 3 W |
| Operating temperature | -25 °C |
| Switching frequency | 10 Hz |
| Type of electric connection | Screw connection |
| Degree of protection (IP) | IP20 |
| Number of fixed inputs | No |
| Number of selectable inputs | No |
| Load | 600 Ohm |
| Inherently safe according to EN 60947-5-6 NAMUR | No |
| Galvanic separation between output to output | No |
| Galvanic separation between input and output | No |
| Galvanic separation between inputs | No |
| Galvanic separation between supply voltage and all other current circuits | No |
| Construction type of device | Built-in device |
| Malfunction message output | No |
| Temperature drift | 0.003 %/K |
Description
meetomvormer-voedingsscheider, 1-kanalig, Bedrijfsspanning 20…250 VAC / 20…125 VDC, Bewaking van te hoge of te lage analoge waarden en bereiken, Kabelbewaking, Instelbaar via PC (FDT/DTM), drukknop aan voorzijde of HART, Ringgeheugen voor 8000 meetwaarden, Displayweergave, Voeding van meetomvormers in 2- of 3-draadstechniek, Geschikt voor actieve en passieve signalen, Uitgangskring: 0/4…20 mA, omkeerbaar, 3 relaisuitgangen, Universele bedrijfsspanning, Volledige galvanische scheiding, Ingang beveiligd tegen verkeerde polariteit, ATEX, IECEx, TR CU, Kosha, Gebruik in zone 2
