Isolating switching amplifier 2-channel IMX12-DI01-2S-2T-0/24VDC
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
216,20 €
EAN: 4047101310597
MPN: 7580020
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Isolating switching amplifier 2-channel IMX12-DI01-2S-2T-0/24VDC |
| Brand | TURCK |
| Categories |
Accessories for Sensors
|
| Country of origin | DE |
| Harmonized System Code | 8543 7090 00 |
| Switching current | 0.1 A |
| Switching voltage | 30 V |
| Switching frequency | 10000 Hz |
| Rated supply voltage at DC | 10 V |
| SIL according to IEC 61508 | 2 |
Packing details
| Packing level 1 | 4047101310597, 4047101310597 |
Other Technical data

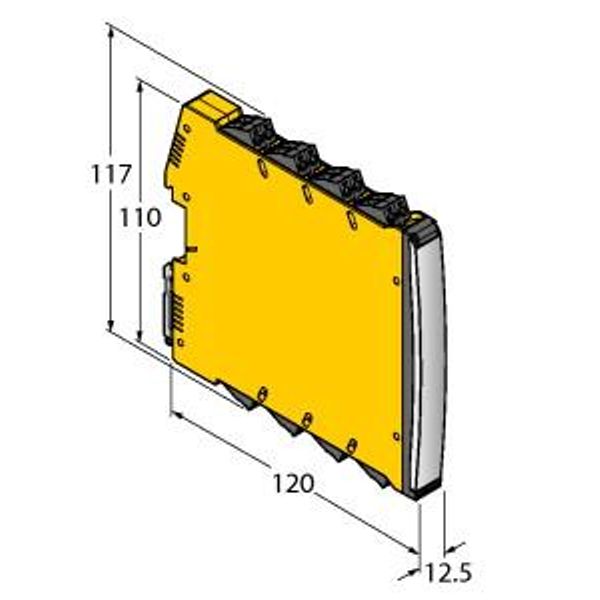

| Mounting method | Snap mounting support rail |
| Width | 12.5 mm |
| Height | 117 mm |
| Depth | 120 mm |
| Power consumption | 0.8 W |
| Suitable for safety functions | No |
| Operating temperature | -25 °C |
| Type of electric connection | Screw connection |
| Degree of protection (IP) | IP20 |
| Number of inputs according to NAMUR | 2 |
| Inherently safe according to EN 60947-5-6 NAMUR | No |
| Galvanic separation between output to output | No |
| Galvanic separation between input and output | No |
| Galvanic separation between inputs | No |
| Galvanic separation between supply voltage and all other current circuits | No |
| Malfunction message output | No |
Description
scheidingsschakelversterker, 2-kanalig, Bedrijfsspanning 10…30 VDC, Zwei Transistorausgänge (≤10kHz), Umschaltbar: Zweikanalig oder Signalverdopplung, Wirkungsrichtung einstellbar (Arbeits‐/Ruhestromverhalten), Überwachung der Eingangskreise auf Drahtbruch und Kurzschluss (ein‐/ausschaltbar), Volledige galvanische scheiding, Ingang beveiligd tegen verkeerde polariteit, Afneembare schroefklemmen, ATEX, IECEx, NEPSI, cUL, cFM, INMETRO, Kosha, TIIS, DNV, GL, Gebruik in zone 2, SIL 2
