Isolating switching amplifier 1-channel  IMX12-DI03-1S-2T-SPR/24VDC image 1
TURCK

Isolating switching amplifier 1-channel  IMX12-DI03-1S-2T-SPR/24VDC

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
238,00 €
This price is valid until 24.12.25
EAN: 4047101310474
MPN: 7580013
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Isolating switching amplifier 1-channel  IMX12-DI03-1S-2T-SPR/24VDC
Brand TURCK
Categories Accessories for Sensors
Country of origin DE
Harmonized System Code 8543 7090 00
Switching current 0.1 A
Switching voltage 30 V
Switching frequency 10000 Hz
Rated supply voltage at DC 10 V
SIL according to IEC 61508 2

Packing details

Packing level 1 4047101310474, 4047101310474

Other Technical data

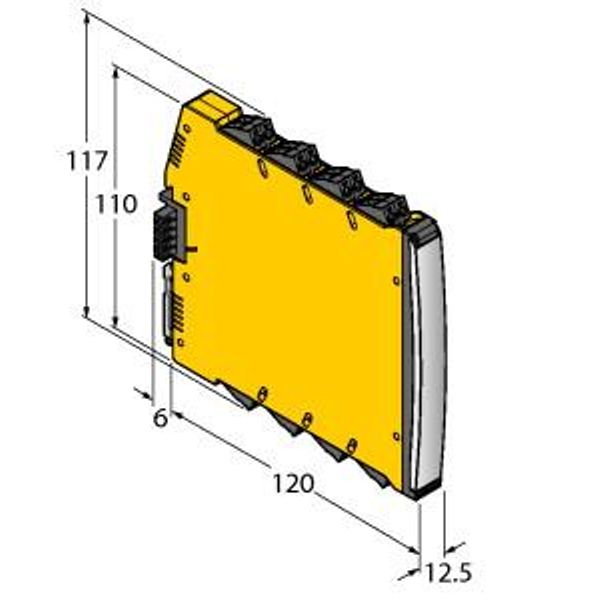

Mounting method Snap mounting support rail
Width 12.5 mm
Height 117 mm
Depth 120 mm
Power consumption 0.8 W
Suitable for safety functions No
Operating temperature -25 °C
Type of electric connection Screw connection
Degree of protection (IP) IP20
Number of inputs according to NAMUR 1
Inherently safe according to EN 60947-5-6 NAMUR No
Galvanic separation between output to output No
Galvanic separation between input and output No
Galvanic separation between inputs No
Galvanic separation between supply voltage and all other current circuits No
Malfunction message output No

Description

scheidingsschakelversterker, 1-kanalig, Bedrijfsspanning 10…30 VDC, transistoruitgang (≤10kHz), transistoralarmuitgang, programmeerbaar: alarmuitgang of signaalverdubbeling, werkingsrichting instelbaar (arbeids-/rustroomgedrag), bewaking van de ingangskringen op draadbreuk en kortsluiting (in‐/ uitschakelbaar), Volledige galvanische scheiding, Ingang beveiligd tegen verkeerde polariteit, afneembare schroefklemmen, power-bridge (connector bij het apparaat geleverd), ATEX, IECEx, NEPSI, cUL, cFM, INMETRO, Kosha, TIIS, Gebruik in zone 2, SIL 2
