Isolating switching amplifier 1-channel IM12-DI03-1S-2R-SPR/24VDC
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
195,58 €
EAN: 4047101420999
MPN: 7580029
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Isolating switching amplifier 1-channel IM12-DI03-1S-2R-SPR/24VDC |
| Brand | TURCK |
| Categories |
Accessories for Sensors
|
| Country of origin | DE |
| Harmonized System Code | 8536 5019 00 |
| Switching current | 2 A |
| Switching voltage | 250 V |
| Switching frequency | 15 Hz |
| Rated supply voltage at DC | 10 V |
| SIL according to IEC 61508 | 2 |
Packing details
| Packing level 1 | 4047101420999, 4047101420999 |
Other Technical data

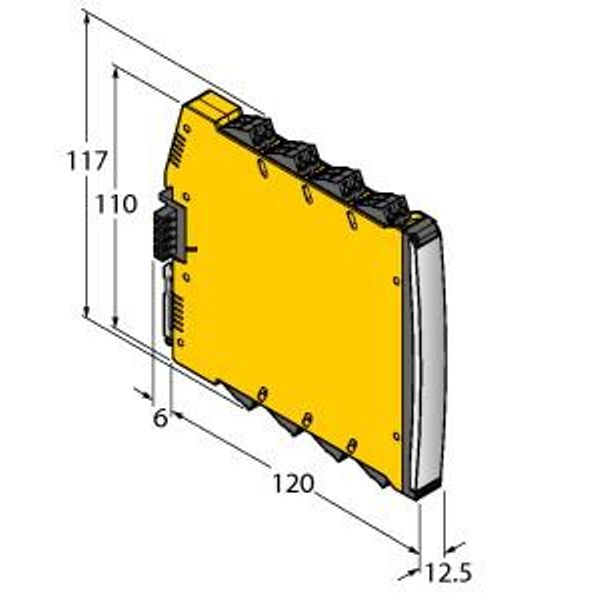

| Mounting method | Snap mounting support rail |
| Width | 12.5 mm |
| Height | 117 mm |
| Depth | 120 mm |
| Suitable for safety functions | No |
| Type of electric connection | Screw connection |
| Degree of protection (IP) | IP20 |
| Number of inputs according to NAMUR | 1 |
| Inherently safe according to EN 60947-5-6 NAMUR | No |
| Galvanic separation between output to output | No |
| Galvanic separation between input and output | No |
| Galvanic separation between inputs | No |
| Galvanic separation between supply voltage and all other current circuits | No |
| Malfunction message output | No |
Description
scheidingsschakelversterker, 1-kanalig, Bedrijfsspanning 10…30 VDC, relaisuitgang (wisselcontact), alarmuitgang (wisselcontact), programmeerbaar: alarmuitgang of signaalverdubbeling, werkingsrichting instelbaar (arbeids-/rustroomgedrag), bewaking van de ingangskringen op draadbreuk en kortsluiting (in‐/ uitschakelbaar), Volledige galvanische scheiding, Ingang beveiligd tegen verkeerde polariteit, afneembare schroefklemmen, power-bridge (connector bij het apparaat geleverd), ATEX gebruik in zone 2, cUL, SIL 2
