Isolating switching amplifier 1-channel IM1-12EX-R
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
211,51 €
EAN: 4047101119633
MPN: 7541226
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Isolating switching amplifier 1-channel IM1-12EX-R |
| Brand | TURCK |
| Categories |
Accessories for Sensors
|
| Country of origin | DE |
| Harmonized System Code | 8543 7090 00 |
| Switching current | 2 A |
| Switching voltage | 250 V |
| Switching frequency | 10 Hz |
| Rated supply voltage at AC | 20 V |
| Rated supply voltage at DC | 20 V |
| SIL according to IEC 61508 | 2 |
Packing details
| Packing level 1 | 4047101119633, 4047101119633 |
Other Technical data
| Mounting method | Snap mounting support rail |

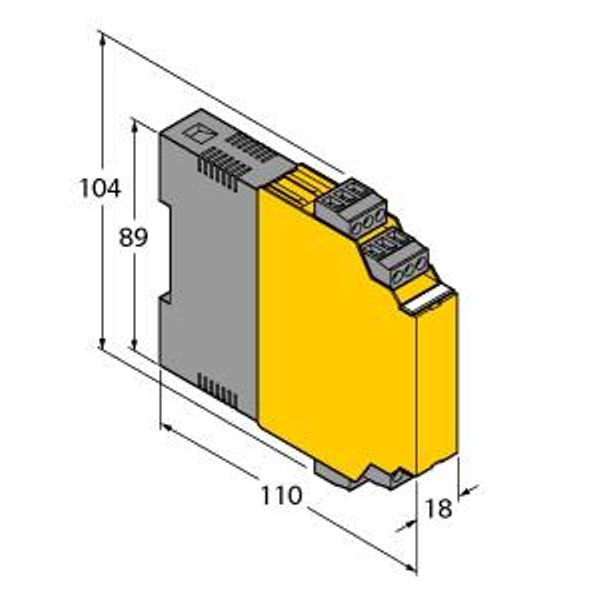

| Width | 18 mm |
| Height | 110 mm |
| Depth | 104 mm |
| Power consumption | 3 W |
| Suitable for safety functions | No |
| Operating temperature | -25 °C |
| Type of electric connection | Screw connection |
| Degree of protection (IP) | IP20 |
| Number of inputs according to NAMUR | 1 |
| Rated operation frequency | 40 Hz |
| Inherently safe according to EN 60947-5-6 NAMUR | No |
| Galvanic separation between output to output | No |
| Galvanic separation between input and output | No |
| Galvanic separation between inputs | No |
| Galvanic separation between supply voltage and all other current circuits | No |
| Malfunction message output | No |
Description
scheidingsschakelversterker, 1-kanalig, Bedrijfsspanning 20…250 VAC / 20…125 VDC, twee relaisuitgangen (N.O.), werkingsrichting instelbaar (arbeids-/rustroomgedrag), bewaking van de ingangskringen op draadbreuk en kortsluiting (in‐/ uitschakelbaar), SIL 2, Volledige galvanische scheiding, Ingang beveiligd tegen verkeerde polariteit, ATEX, IECEx, UL, CFMUS, CSA, TR CU, NEPSI, KOSHA, TIIS, CCOE, INMETRO, gebruik in zone 2
