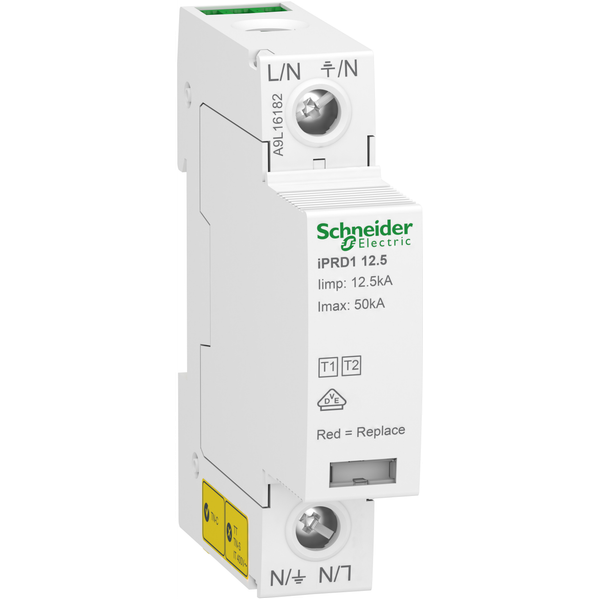

iPRD1 12.5r 1P 20/50kA Ti ps 1+2

Order only

Price (excl. VAT):

96,57 €

This price is valid until 31.12.25

EAN: 3606481490193

MPN: A9L16182

Package: 1

Box: 12

Pallet: 576

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	iPRD1 12.5r 1P 20/50kA Ti ps 1+2
Brand	Schneider Electric
Categories	Surge Protection Devices (SPD)
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Voltage protection level	1.5 kV
Max. continuous voltage AC	350 V
Nominal voltage AC	230 V
Nominal voltage DC	0 V
Test class	Type 1 + 2
Voltage protection level L-N	1.5 kV
Max. continuous voltage DC	0 V
Degree of protection (IP)	IP20
Max. PV-voltage	0 V
Voltage protection level N-PE	1.5 kV

Packing details

Packing level 1	3606481490193
Packing level 2	3606481490190
Packing level 3	3606481490197
Packing level 4	3606481490193

Other Technical data

Mounting method	DIN rail (top hat rail) 35 mm
Number of poles	1
Construction size	2 modular spacing
Remote signalling	Yes
Signalling at the device	Optic
Integrated backup fuse	No
Max. conductor cross section solid (solid, stranded)	35 mm²
Max. conductor cross section flexible (fine-strand)	25 mm²
System configuration DC	No
System configuration IT	No
System configuration TN	No
System configuration TN-C	Yes
System configuration TN-S	No
System configuration TT	No
System configuration other	No
System configuration TN-C-S	No
Max. overcurrent protection device, parallel connection (fuse)	0 A
Max. overcurrent protection device, series connection (fuse)	0 A
Voltage switching spark gap technology	No

Downloads

Declaration EPD (Environmental Product Declaration) Mounting instruction

Description

This Acti9 iPRD1 12.5r surge arrester protects 1P residential and small commercial buildings installations against direct and indirect transient overvoltages. This type 1+2 device autoprotected by an integrated circuit-breaker is recommanded for high risk level in incoming panel board. It offers remote reporting of the "cartridge must be changed" message. This prewired surge arrester allows quick replacement of withdrawable cartridges when they are damaged. It incorporates its end of life safety disconnector. This Acti9 iPRD1 12.5r is compatible with TN-C earthing system. Associated with Compact NSXm H TM80D the breaking capacity is 70kA. The Imax maximum discharge current is 50kA. The In nominal discharge current is 20kA. The Uc maximum continuous operating voltage in common mode is 350VAC between phase and earth. The Up Voltage protection level is 1.5kV type 1+2. The Ue rated operational voltage is 230VAC. The operating frequency is 50Hz. The dimensions are (W) 18mm x (H) 89mm x (D) 69mm. The width in 9mm pitches is 2. The weight is 171g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +80°C. This product is complies with EN 61643-11 2012 and IEC 61643-11 2011 standards.
