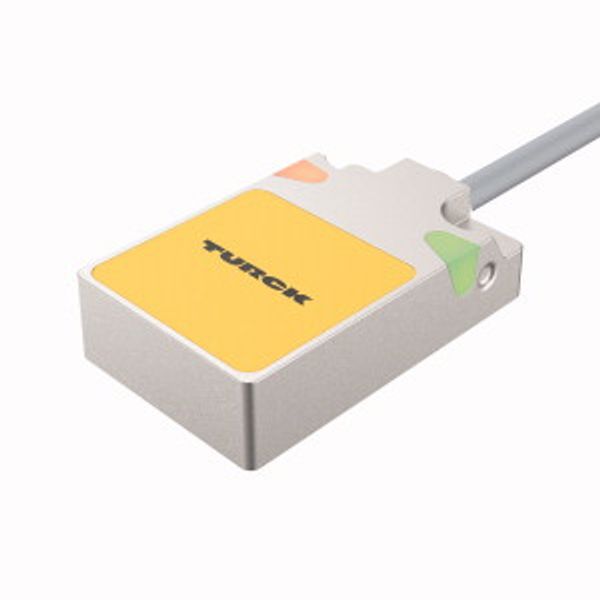

Inductive Sensor With Extended Switching Distance BI8U-Q08-AP6X2-0.6-RS4/S1160
Order Only
Minimal order quantity: 1
Price (excl. VAT):
124,43 €
EAN: 4047101262391
MPN: 1662028
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Inductive Sensor With Extended Switching Distance BI8U-Q08-AP6X2-0.6-RS4/S1160 |
| Brand | TURCK |
| Categories |
Proximity Sensors
|
| Country of origin | CH |
| Harmonized System Code | 8536 5019 00 |
| Voltage type | DC |
| Switching distance | 8 mm |
| Type of electric connection | Cable with connector |
| Type of switching output | PNP |
| Type of switch function | Normally open contact |
| Construction type housing | Cuboid |
| Mechanical mounting condition for sensor | Concise |
| Supply voltage | 10 V |
Packing details
| Packing level 1 | 4047101262391, 4047101262391 |
Other Technical data
| Cascadable | No |
| Housing material | Metal |
| Suitable for safety functions | No |
| Coating housing | Nickel-plated |
| Switching frequency | 250 Hz |
| With monitoring function downstream switching devices | No |
| Type of actuation | Metallic Target |
| Width sensor | 20 mm |
| Compression-resistant | No |
| Height of sensor | 8 mm |
| Length of sensor | 32 mm |
Downloads
Description
Inductieve sensor, Met verhoogde schakelafstand, Bedrijfsspanning 10…30 VDC, Nominale schakelafstand 8 mm, Bondig, Kabellengte 0.6 m, Rechthoekig, hoogte 8 mm, Actief vlak bovenaan, Metaal, Zamac vernikkeld, Factor 1 voor alle metalen, Verhoogde schakelafstand, Beschermingsklasse IP 68, Magneetveldvast, Direct op metaal monteerbaar, DC 3-draads, 10…30 VDC, N.O., PNP-uitgang, Pigtail met M112 x 1 connector
