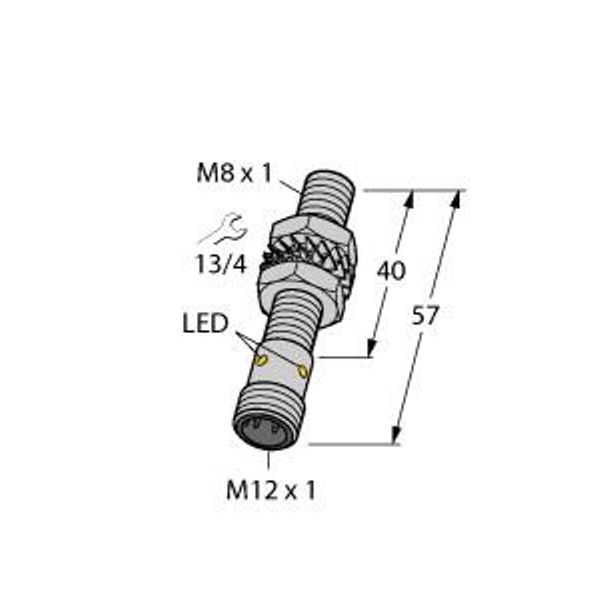

Inductive Sensor With Extended Switching Distance BI2U-EG08-AN6X-H1341
Order only
Price (excl. VAT):
108,35 €
EAN: 4047101152029
MPN: 4602037
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Inductive Sensor With Extended Switching Distance BI2U-EG08-AN6X-H1341 |
| Brand | TURCK |
| Categories |
Proximity Sensors
|
| Country of origin | CH |
| Harmonized System Code | 8536 5019 00 |
| Voltage type | DC |
| Switching distance | 2 mm |
| Type of electric connection | Plug-in connection |
| Type of switching output | NPN |
| Type of switch function | Normally open contact |
| Construction type housing | Cylinder, screw-thread |
| Mechanical mounting condition for sensor | Concise |
| Supply voltage | 10 V |
Packing details
| Packing level 1 | 4047101152029, 4047101152029 |
Other Technical data
| Cascadable | No |
| Housing material | Metal |
| Suitable for safety functions | No |
| Switching frequency | 1000 Hz |
| With monitoring function downstream switching devices | No |
| Type of actuation | Metallic Target |
| Compression-resistant | No |
| Diameter sensor | 8 mm |
| Length of sensor | 57 mm |
Downloads
Description
Inductieve sensor, Met verhoogde schakelafstand, Bedrijfsspanning 10…30 VDC, Nominale schakelafstand 2 mm, Bondig, schroefdraad, M8 x 1, roestvaststaal, 1.4427 SO, factor 1 voor alle metalen, beschermingsgraad IP68, magneetveldvast, hoge schakelafstand, hoge schakelfrequentie, overbondige inbouw mogelijk, DC 3-draads, 10...30 VDC, N.O., NPN-uitgang, connector, M12 x 1
