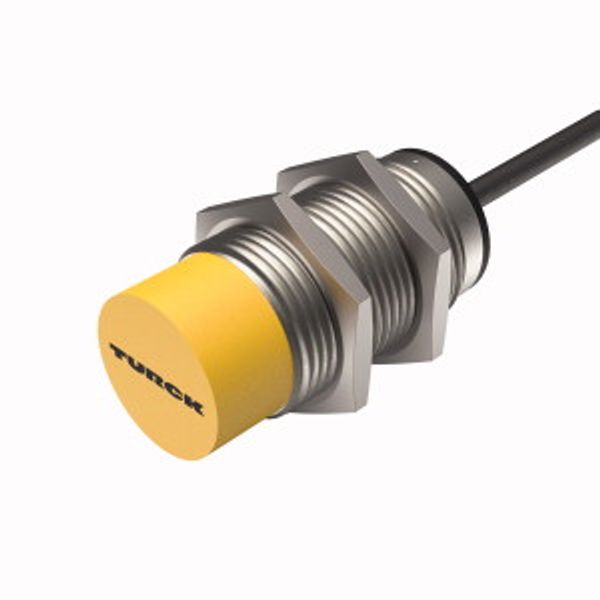

Inductive Sensor NI15-M30-ADZ3X 12M
Order Only
Price (excl. VAT):
101,65 €
EAN: 4047101523423
MPN: 100018051
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Inductive Sensor NI15-M30-ADZ3X 12M |
| Brand | TURCK |
| Categories |
Proximity Sensors
|
| Country of origin | CN |
| Harmonized System Code | 8536 5080 00 |
| Voltage type | AC/DC |
| Switching distance | 15 mm |
| Type of electric connection | Cable |
| Type of switch function | Normally open contact |
| Construction type housing | Cylinder, screw-thread |
| Mechanical mounting condition for sensor | Not flat |
| Supply voltage | 20 V |
Packing details
| Packing level 1 | 4047101523423, 4047101523423 |
Other Technical data
| Cascadable | No |
| Housing material | Metal |
| Suitable for safety functions | No |
| Coating housing | Chromium-plated |
| Switching frequency | 20 Hz |
| With monitoring function downstream switching devices | No |
| Type of actuation | Metallic Target |
| Compression-resistant | No |
| Diameter sensor | 30 mm |
| Length of sensor | 64 mm |
Downloads
Description
Inductieve sensor, Bedrijfsspanning 20…250 VAC / 10…300 VDC, Nominale schakelafstand 15 mm, Niet-bondig, Kabellengte 12 m, schroefdraad, M30 x 1,5, messing verchroomd, AC 2-draads, 20…250 VAC, DC 2-draads, 10…300 VDC, Kortsluitvast, N.O.-contact, Kabelaansluiting
