Inductive Sensor For Use in Vehicle Board Nets BI8-EM18-AP45XLD-H1141
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
113,42 €
EAN: 4047101201154
MPN: 1584010
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Inductive Sensor For Use in Vehicle Board Nets BI8-EM18-AP45XLD-H1141 |
| Brand | TURCK |
| Categories |
Proximity Sensors
|
| Country of origin | DE |
| Harmonized System Code | 8536 5019 00 |
| Voltage type | DC |
| Switching distance | 8 mm |
| Type of electric connection | Plug-in connection |
| Type of switching output | PNP |
| Type of switch function | Normally open contact |
| Construction type housing | Cylinder, screw-thread |
| Mechanical mounting condition for sensor | Concise |
| Supply voltage | 8.6 V |
| Performance level according to EN ISO 13849-1 | None |
| SIL according to IEC 61508 | None |
Packing details
| Packing level 1 | 4047101201154, 4047101201154 |
Other Technical data
| Cascadable | No |
| Housing material | Metal |
| Suitable for safety functions | No |
| Switching frequency | 500 Hz |
| Explosion safety category for gas | Other |
| Explosion safety category for dust | Other |
| With monitoring function downstream switching devices | No |
| Type of actuation | Metallic Target |
| Compression-resistant | No |

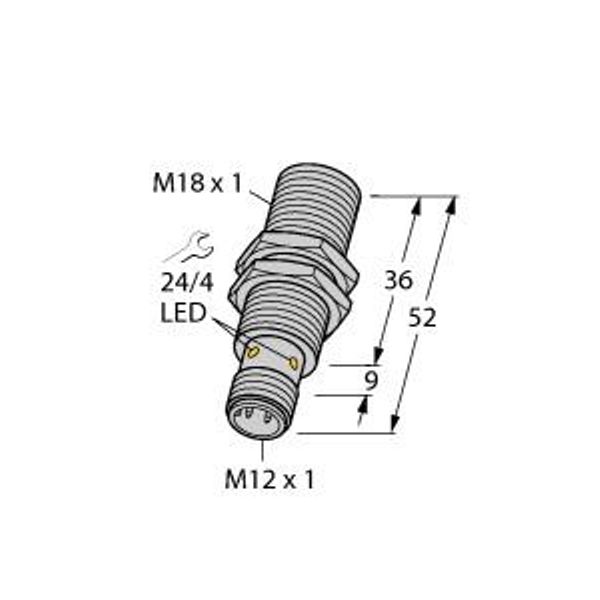

| Diameter sensor | 18 mm |
| Length of sensor | 52 mm |
Downloads
Description
Inductieve sensor, voor toepassingen in voertuig-boordnetten, Bedrijfsspanning 8.6…65 VDC, Nominale schakelafstand 8 mm, Bondig, schroefdraad, M18 x 1, roestvaststaal, 1.4301, Voor voertuig-boordnetten, 12V en 24V, Verhoogde stoorbestendigheid 100 V/m gestraald volgens ISO 11452-4 en 100 mA BCI volgens ISO 11452-2, Load-dump-bescherming volgens DIN ISO 7637‐2 (SAE J 113‐11), Uitgebreid temperatuurbereik, Hoge beschermingsklasse IP68/IP69K, Bescherming tegen zoutsproeinevels en snelle temperatuurwisselingen, Permanent leesbare lasergegraveerde type-aanduiding, DC 3‐Draht, 8,4…65 VDC, Schließer, PNP‐Ausgang, Steckverbinder, M12 x 1, E1 typecertificaat door automobielfederatie
