Inductive Sensor For the food industry NI10U-EM12WD-AP6X-H1141/3GD
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
128,82 €
EAN: 4047101129205
MPN: 1634857
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Inductive Sensor For the food industry NI10U-EM12WD-AP6X-H1141/3GD |
| Brand | TURCK |
| Categories |
Proximity Sensors
|
| Country of origin | DE |
| Harmonized System Code | 8536 5019 00 |
| Voltage type | DC |
| Switching distance | 10 mm |
| Type of electric connection | Plug-in connection |
| Type of switching output | PNP |
| Type of switch function | Normally open contact |
| Construction type housing | Cylinder, screw-thread |
| Mechanical mounting condition for sensor | Not flat |
| Supply voltage | 10 V |
| Performance level according to EN ISO 13849-1 | None |
| SIL according to IEC 61508 | None |
Packing details
| Packing level 1 | 4047101129205, 4047101129205 |
Other Technical data
| Cascadable | No |
| Housing material | Metal |
| Suitable for safety functions | No |
| Switching frequency | 1500 Hz |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | ATEX dust-ex-protection, Cat. 3D |
| With monitoring function downstream switching devices | No |
| Type of actuation | Metallic Target |
| Compression-resistant | No |

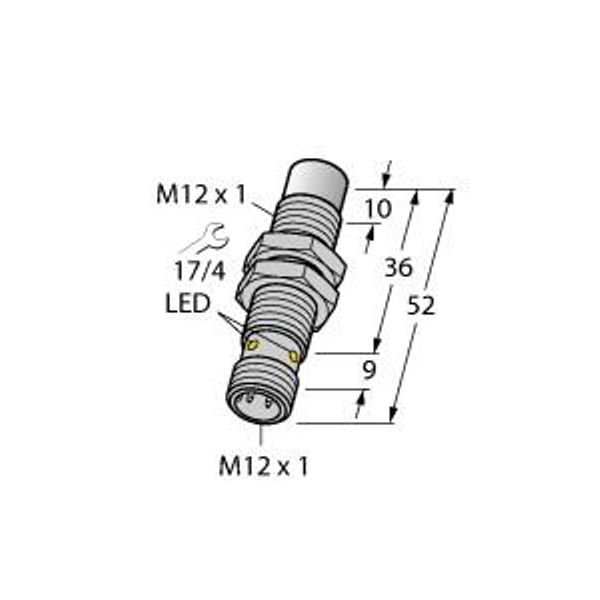

| Diameter sensor | 12 mm |
| Length of sensor | 52 mm |
Downloads
Description
Inductieve sensor, voor de levensmiddelenindustrie, Bedrijfsspanning 10…30 VDC, Nominale schakelafstand 10 mm, Niet-bondig, schroefdraad, M12 x 1, roestvaststaal, 1.4404, Frontkap van vloeibaar kristal-polymeer, Factor 1 voor alle metalen, Magneetveldvast, Voor temperaturen van -40 °C tot +100 °C, Hoge beschermingsklasse IP69K voor extreme omgevingsomstandigheden, Speciale dubbele afdichting, Bescherming tegen alle gebruikelijke zuren en alkalische reinigingsmiddelen, Permanent leesbare lasergegraveerde type-aanduiding, DC 3-draads, 10...30 VDC, N.O., PNP-uitgang, connector, M12 x 1, ATEX categorie II 3 G, Ex zone 2, ATEX categorie II 3 D, Ex zone 22
