Inductive Sensor For Rotary Actuators NI4-DSC26-2Y1X2-H1140
Order only
Price (excl. VAT):
151,18 €
EAN: 4047101145274
MPN: 1051001
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Inductive Sensor For Rotary Actuators NI4-DSC26-2Y1X2-H1140 |
| Brand | TURCK |
| Categories |
Proximity Sensors
|
| Country of origin* | CH |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5019 00 |
| Voltage type | DC |
| Switching distance | 4 mm |
| Type of electric connection | Plug-in connection |
| Type of switching output | NAMUR |
| Mechanical mounting condition for sensor | Not flat |
| Performance level according to EN ISO 13849-1 | Level c |
| SIL according to IEC 61508 | None |
Packing details
| Packing level 1 | 4047101145274, 4047101145274 |
Other Technical data
| Cascadable | No |
| Housing material | Plastic |
| Suitable for safety functions | Yes |
| Switching frequency | 50 Hz |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 2G |
| Explosion safety category for dust | ATEX dust-ex-protection, Cat. 1D |
| With monitoring function downstream switching devices | No |
| Type of actuation | Metallic Target |

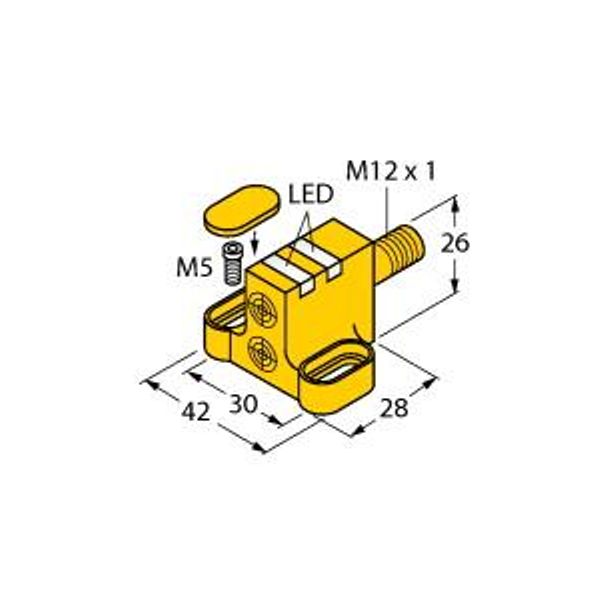

| Width sensor | 42 mm |
| Compression-resistant | No |
| Height of sensor | 26 mm |
| Length of sensor | 28 mm |
Downloads
Description
Inductieve sensor, dubbelsensor voor de positiecontrole op kleppen, Nominale schakelafstand 4 mm, Niet-bondig, rechthoekig, bouwvorm DSC26, kunststof, PP, twee uitgangen voor de detectie van de positie van de klepstanden, Montage op alle standaardaandrijvingen, DC 2-draads, nom. 8,2 VDC, 2 x uitgang volgens DIN EN 60947-5-6 (NAMUR), connector, M12 x 1, ATEX-categorie II 2 G, Ex-zone 1, ATEX-categorie II 1 D, Ex-zone 20, SIL 2 (modus voor lage vraag) conform IEC 61508, PL c conform ISO 13849-1 bij HFT0, SIL 3 (modus voor volledige vraag) conform IEC 61508, PL e conform ISO 13849-1 met redundante configuratie HFT1
