Inductive Sensor BI2-Q10S-Y1X
Order Only
Minimal order quantity: 1
Price (excl. VAT):
52,73 €
EAN: 4047101149999
MPN: 4012130
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Inductive Sensor BI2-Q10S-Y1X |
| Brand | TURCK |
| Categories |
Proximity Sensors
|
| Country of origin | CH |
| Harmonized System Code | 8536 5019 00 |
| Voltage type | DC |
| Switching distance | 2 mm |
| Type of electric connection | Cable |
| Type of switching output | NAMUR |
| Construction type housing | Cuboid |
| Mechanical mounting condition for sensor | Concise |
| Performance level according to EN ISO 13849-1 | Level c |
| SIL according to IEC 61508 | None |
Packing details
| Packing level 1 | 4047101149999, 4047101149999 |
Other Technical data
| Cascadable | No |
| Housing material | Plastic |
| Suitable for safety functions | Yes |
| Switching frequency | 1000 Hz |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 1G |
| Explosion safety category for dust | ATEX dust-ex-protection, Cat. 1D |
| With monitoring function downstream switching devices | No |
| Type of actuation | Metallic Target |

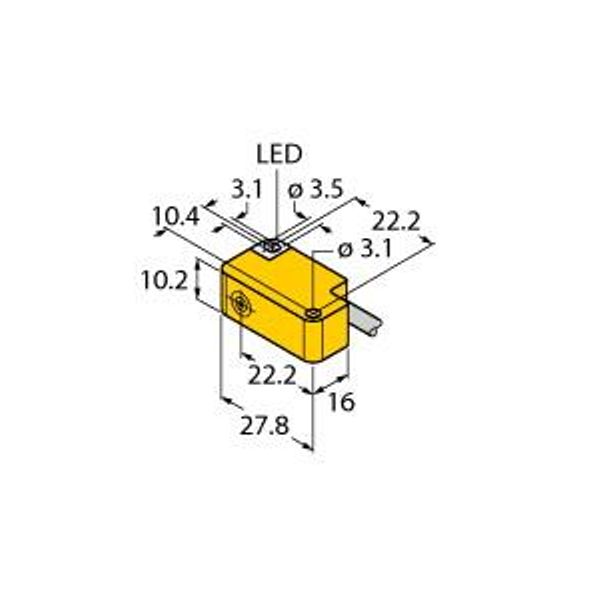

| Width sensor | 16 mm |
| Compression-resistant | No |
| Height of sensor | 10.2 mm |
| Length of sensor | 27.8 mm |
Downloads
Description
Inductieve sensor, Nominale schakelafstand 2 mm, Bondig, Kabellengte 2 m, Rechthoekig, hoogte 10,2 mm, Actief vlak zijdelings, Kabeluitgang naar alle zijden mogelijk, Kunststof, PP-GF20, DC 2-draads, nom. 8,2 VDC, uitgang volgens DIN EN 60947-5-6 (NAMUR), kabelaansluiting, ATEX-categorie II 1 G, Ex-zone 0, ATEX-categorie II 1 D, Ex-zone 20, SIL2 (modus voor lage vraag) conform IEC 61508, PL c conform ISO 13849-1 bij HFT0, SIL3 (modus voor volledige vraag) conform IEC 61508, PL e conform ISO 13849-1 met redundante configuratie HFT1
